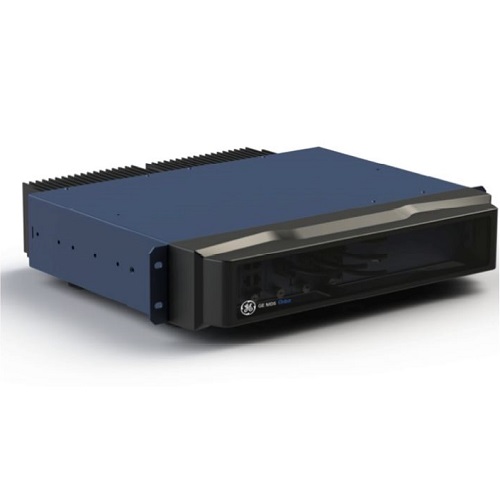

MDS LN Master Station 406.1-470 No Duplexer Non Redundant 36-75 VDC
Normally In Stock
Code: 25463
MDS LN Master Station MPRL4ENDN02S2G2NFULNN licensed 406.1-470 MHz Non-Protected Non-Redundant No Duplexer (wired for external duplexer) 36-75 VDC Master Station with serial and ethernet data ports. Used with Orbit radios. FCC/IC Regulatory approval.
Condition: New
Usually ships within 2 weeks$5315.09
Sale Price
$4831.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
MDS LN Master Station 406.1-470 No Duplexer (wired for external duplexer) Non Redundant, Non-Protected 36-75 VDC Serial Master Station with serial and ethernet data ports. MPRL4ENDN02S2G2NFULNN is compatible with SD4 and 4710 radios with data rates up to 19.2 Kbps. Max range of 50 miles and sensitivity of -112. Temperature range of -22-140 degrees fahrenheit, power consumption of 5 A or 60 watts. Excellent performance in the face of interference or difficult signal paths. Network management software simplifies maintenance tasks, reduces network infrastructure management costs, and provides a non-intrusive means of maintenance and link monitoring. Redundancy options for protected 1+1 warm stanby configuration for reliable continuous use. Full duplex, half duplex and simplex modes.
Specifications
Radio 2 Type
None
Radio Capability
Point To Multipoint
Radio Type
400 Mhz Serial Licensed
Radio Housing
Enclosed
Radio Encryption
None
Radio UL Approval
UL Approved
Radio Data Protocol
Serial RS232
Radio Data Protocol
Ethernet
Radio Temperature Range High
140F
Radio Voltage
48 VDC
Radio Carrier Power
5 Watt
Radio RF Connector
N Female
Radio Temperature Range Low
-22F
Radio Data Rate
19.2 Kbps
Radio Sensitivity
-112
Radio Redundancy
Non-Redundant 1 Radio
Radio Serial Ports
2 Serial Ports
Radio Ethernet Ports
1 Ethernet Port
Radio Data Interface
RJ45
Radio Mounting
Standard Mount
Radio Battery Backup
No Battery Backup
Radio Voltage
64 VDC
Radio Frequency Range
406.1-470 Mhz
Radio Frequency Band
B Band 406.1-470 Mhz
Radio Antenna Ports
1 Antenna Port
Manufacturer
MDS
Line
LN Master Station (Orbit)
Component
Radio
Features
The MDS™ Orbit Licensed Narrowband (LN) Series radios implement the advanced networking and security features of the MDS Orbit platform to bring new levels of performance and versatility to networks utilizing narrowband licensed spectrum in the 400 and 900 MHz frequency bands.
In addition to the core feature suite derived from the Orbit platform, the LN Series radios implement high speed QAM modulation options for a 6 times speed improvement over other narrowband solutions operating in 6.25, 12.5 and 25 KHz channel sizes.
The MDS Orbit LN Series radios are available in both the MCR (Multiservice-Connect Router) and ECR (Edge-Connect Router) models.
Both the MCR and ECR share the same networking and security functionality with the MCR being a dual radio router while the ECR supports a single LN radio with optional WiFi in a more compact form factor. The MCR-LN and ECR-LN support IP/Ethernet and serial communication for data acquisition applications to remote PLC, control and metering devices.
Users can simultaneously operate multiple host systems, remote device types and protocols to support SCADA and M2M applications on a common infrastructure.
