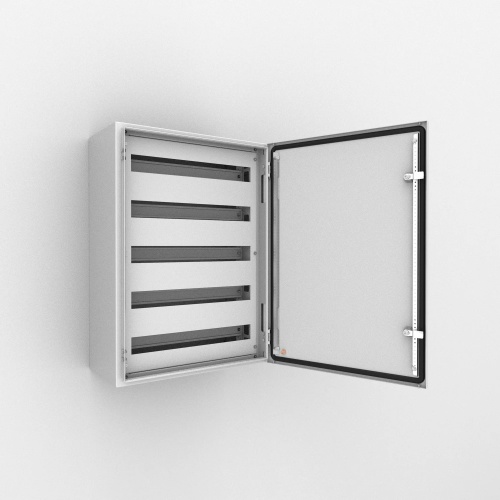

nVent Hoffman AC06040R5 Modular Chassis, AC, 580x360x98mm, Light Gray, Mild Steel
Code: 231519
nVent Hoffman AC06040R5 Feature: Chassis with a front cover to mount DIN-rail components within wall mounted enclosuresAdvantage: Modular components can be pre-mounted onto the chassis before being installed into the enclosure. The electrical cables will be covered by the front coverBenefit: The chassis allows panel builders to quickly install modular components. As the electrical connections and cables are protected, safe operations can be performed in the fieldComment: Stainless steel wall mounted enclosures require machining before the chassis can be mountedKit includes slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessoriesMounting requirements: To be assembled on MAS and ASR enclosures
Condition: New
Usually ships Same Day or Next Day$339.43
Sale Price
$282.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman AC06040R5 Feature: Chassis with a front cover to mount DIN-rail components within wall mounted enclosuresAdvantage: Modular components can be pre-mounted onto the chassis before being installed into the enclosure. The electrical cables will be covered by the front coverBenefit: The chassis allows panel builders to quickly install modular components. As the electrical connections and cables are protected, safe operations can be performed in the fieldComment: Stainless steel wall mounted enclosures require machining before the chassis can be mountedKit includes slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessoriesMounting requirements: To be assembled on MAS and ASR enclosures
Specifications
Backplate Composition
Steel
Component
Modular Chassis
Backplate Depth
14.17"
Backplate Width
22.83"
Manufacturer
Hoffman
Features
Mounting requirements: To be assembled on MAS and ASR enclosures.
Finish: RAL 7035 structured powder coating.
Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
