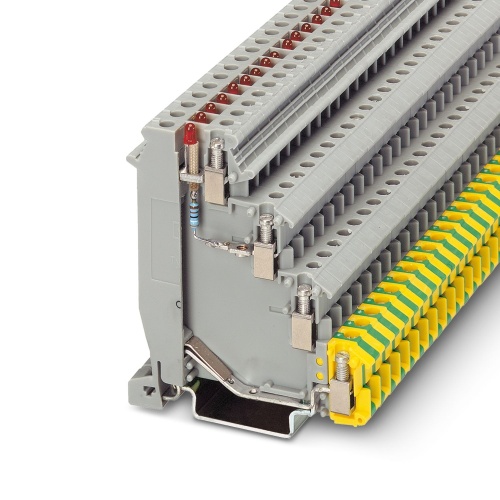

Phoenix Contact 2718028 Initiator/actuator terminal block VIOK 1,5-LA 24RD/O-MO
Normally In Stock
Code: 23061
VIOK 1,5-LA 24RD/O-MO Phoenix Contact 2718028 Phoenix Contact VIOK 1, 5-LA 24RD/O-MO, Sensor/actuator Terminal Block, Cross section: 0.2 mm - 4 mm, AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: gray (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$23.33
Sale Price
$19.44
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2718028 The initiator/actuator terminal block has a nominal voltage of 250 V and a maximum current rating of 24 A, with connections made via screw threads at four different levels. The rated cross-sectional area is 2.5 mm², with an optional range of 0.2-4 mm², and also features screw connections at levels one, two, and three. Mounting options include NS 35/7,5 and NS 35/15, with a color designation as gray.
Specifications
Terminal Block Indication
24V LED Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Diode
With Diode
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

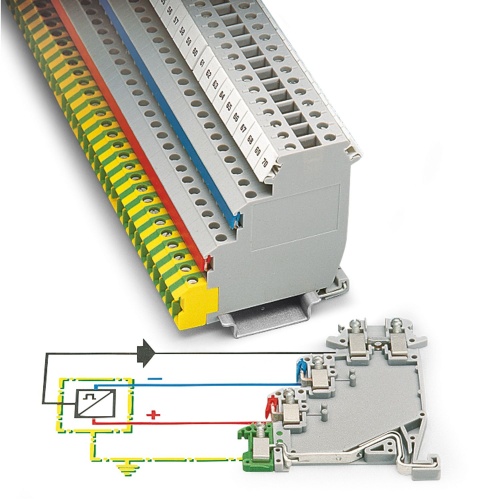

The two middle terminal points supply potential to the initiator
This terminal block is a combination of a DIK ... and DOK ... terminal block where a single terminal block can be used for initiators and actuators
The PE connection is located in the lower level
The upper level contains the feed-through connections for the signal cable which can be labeled
