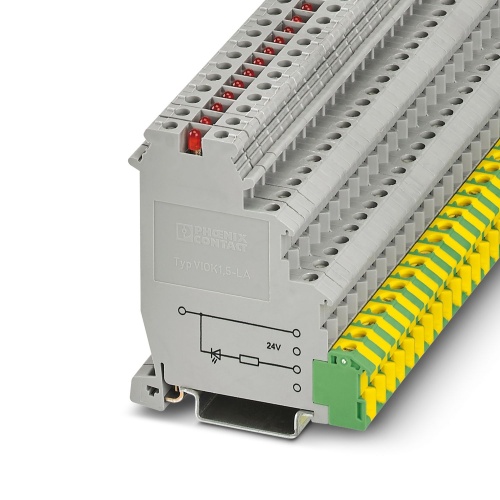

Phoenix Contact 2718073 Initiator/actuator terminal block VIOK 1,5-LA 24RD/MU-O
Normally In Stock
Code: 23060
VIOK 1,5-LA 24RD/MU-O Phoenix Contact 2718073 Phoenix Contact VIOK 1, 5-LA 24RD/MU-O, Sensor/actuator Terminal Block, Cross section: 0.2 mm - 4 mm, AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: gray (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$23.33
Sale Price
$19.44
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2718073 The terminal block features a nominal voltage of 250V and a maximum current of 24A, with connection methods including screw connections at different levels and various cross-section ratings. The connection method for the lower-level sections involves screw connections on the right side, while the upper-level sections have screw connections on the left side. The terminal block is also available in two mounting types: NS35/7.5 and NS35/15, with a standard gray color.
Specifications
Terminal Block Indication
24V LED Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Diode
With Diode
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
