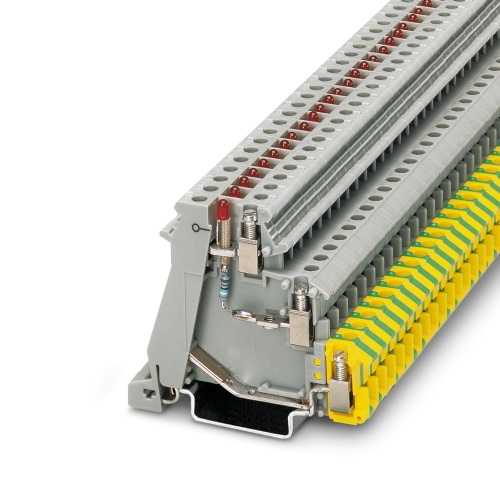

Phoenix Contact 2717029 Initiator/actuator terminal block DOK 1,5-LA 24RD/O-M
Normally In Stock
Code: 23059
DOK 1,5-LA 24RD/O-M Phoenix Contact 2717029 Sensor Actuator Terminal-Ground Block DOK 1.5-LA 24RD/O-M
Condition: New
Usually Ships Same day or Next Day$18.82
Sale Price
$15.68
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2717029 The terminal block features an initiator/actuator function with a nominal voltage of 24 V and a maximum current rating of 24 A. It utilizes screw connections for joining components and has rated cross-sections ranging from 0.2 mm² to 4 mm². The terminal block is designed for mounting using the NS 35/7,5 and NS 35/15 types, and its outer casing is typically gray in color.
Specifications
Terminal Block Indication
24V LED Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Diode
With Diode
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

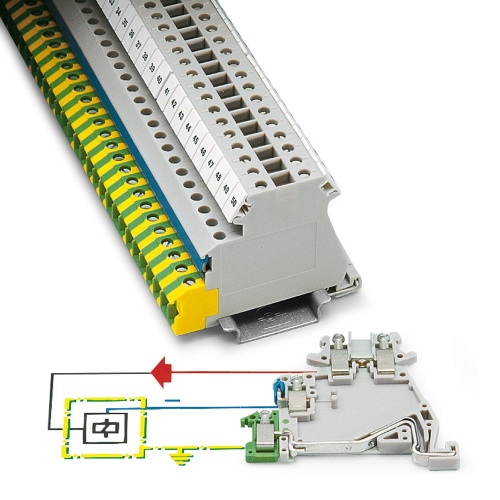

Because the spine of the insertion bridge can be snapped into place with the terminal block housing, all the terminal points can be wired freely and the bridge can be securely positioned
Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
The forks of the insertion bridge can be easily loosened for bridging between non-adjacent terminal blocks
Same shape as DIK ... three-level initiator terminal blocks

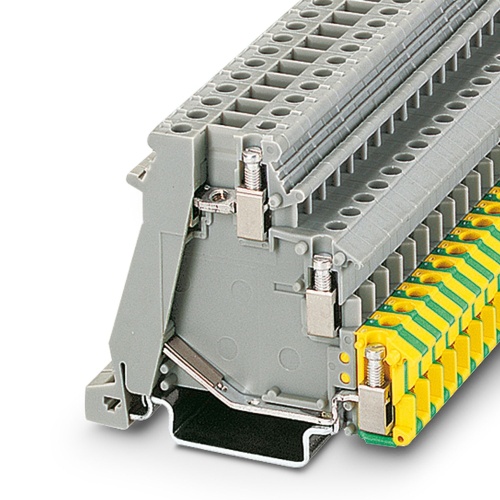

Unlike the DIK terminal blocks, the lower level of these output terminal blocks makes direct contact with the DIN rail and as a PE connection are marked yellow-green

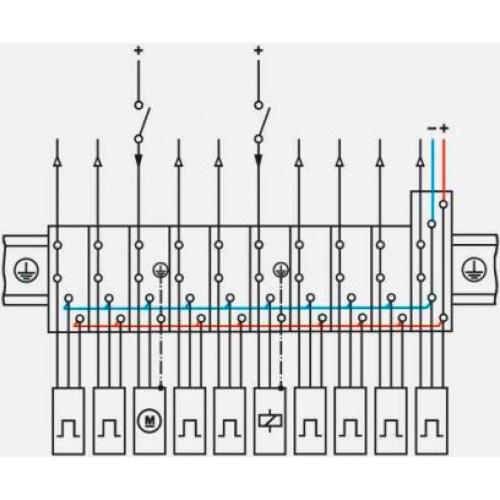

Alternate wiring of an actuator followed by an initiator is easy
The upper level contains the feed-through connections for the signal cable which can be labeled
The middle level supplies the connected actuators with power
