Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

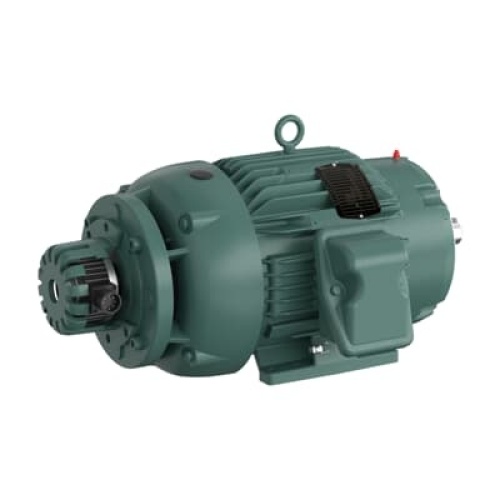

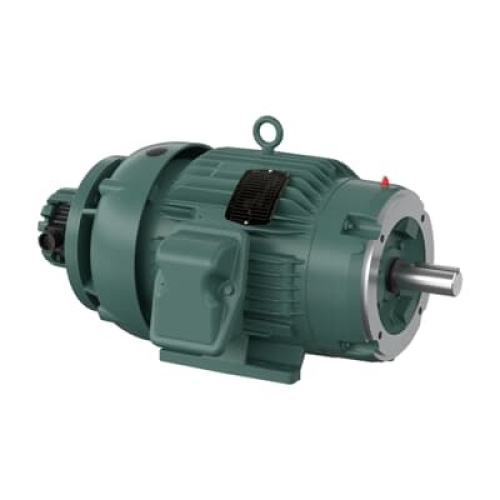

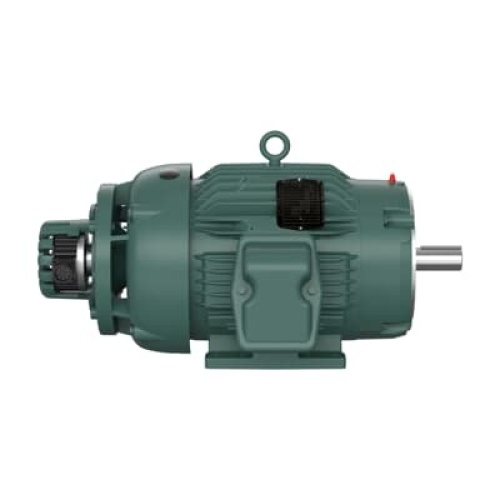

Baldor ZDVSCP3770T 7.5HP, 1770RPM, 3PH, 60HZ, 213TC, 0738M, Totally Enclosed Fan Cooled
Normally In Stock
Code: 219465
Baldor ZDVSCP3770T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$7923.31
Sale Price
$6602.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor ZDVSCP3770T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ 1770 RPM,1800 RPM @ 60 HZ 19 A @ 230.0 V
20 A @ 208.0 V
9.500 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frame Model
213TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
20 Amp
Motor Amperage (Full Load)
19 Amp
Motor Amperage (Full Load)
9.5 Amp
Motor NEMA Design
NEMA Design J
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Delivers up to 200% overload torque for one minute below base speed, along with constant horsepower capability up to 1.5 times base speed.
Full-load (1000:1 constant) torque from zero to base speed, ideal for variable-speed applications.
Motors include pre-drilled and tapped shaft provisions for encoder mounting, with hollow-shaft encoder kits available from stock.
Advanced insulation system designed exclusively for operation on inverter drives—supports both open-loop and closed-loop control.
Available in standard NEMA frames for both replacements and new installations. Perfect for constant-power applications such as winders, extruders and more.
