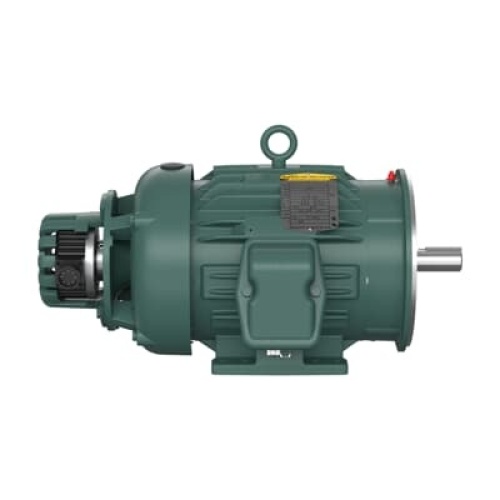

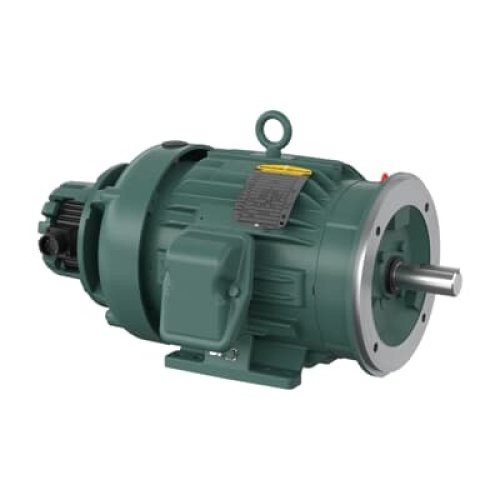

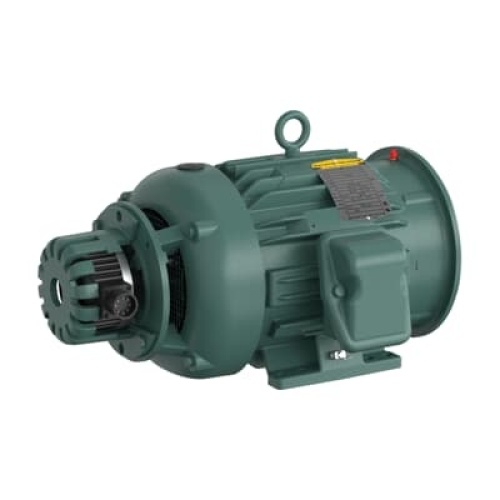

Baldor ZDVSCP3665T 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0641M, Totally Enclosed Fan Cooled, F1
Normally In Stock
Code: 219464
Baldor ZDVSCP3665T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 5 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$6839.32
Sale Price
$5699.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor ZDVSCP3665T 3 230.0 V @ 60 HZ
460.0 V @ 60 HZ 5 HP @ 60 HZ 1750 RPM,1800 RPM @ 60 HZ 13.200 A @ 230.0 V
6.600 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
5 HP
Motor Frame Model
184TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor NEMA Design
NEMA Design J
Motor Amperage (Full Load)
6.6 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
13.2 Amp
Features
Delivers up to 200% overload torque for one minute below base speed, along with constant horsepower capability up to 1.5 times base speed.
Full-load (1000:1 constant) torque from zero to base speed, ideal for variable-speed applications.
Motors include pre-drilled and tapped shaft provisions for encoder mounting, with hollow-shaft encoder kits available from stock.
Advanced insulation system designed exclusively for operation on inverter drives—supports both open-loop and closed-loop control.
Available in standard NEMA frames for both replacements and new installations. Perfect for constant-power applications such as winders, extruders and more.
