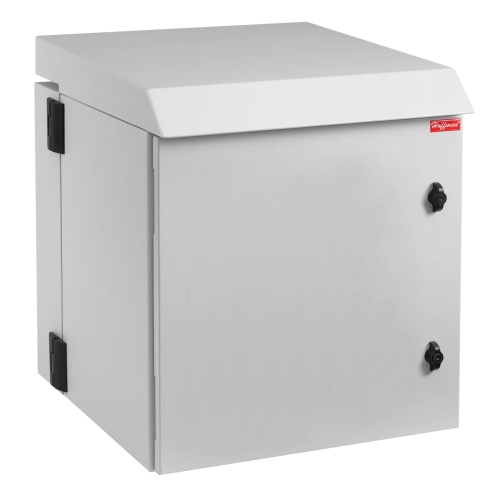

nVent Hoffman PTHW362424GF 37.0"x24.0"x25.0" ProTek Double-Hinged Fan Packages
Normally In Stock
Code: 21758
nVent Hoffman PTHW362424GF 37.0"x24.0"x25.0" Wall Mount ProTek Double-Hinged Fan Packages
Condition: New
Usually ships Same Day or Next Day$4630.96
Sale Price
$3859.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman PTHW362424GF 37.0"x24.0"x25.0" Wall Mount ProTek Double-Hinged Fan Packages
Specifications
Component
Fan Package
Thermal Component Width
24.0"
Thermal Component Height
37.0"
Thermal Component Rack Units
19
Line
Protek
Manufacturer
Hoffman
Features
Window door, made of .25-inch scratch-resistant safety glass and mechanically fastened, provides visual monitoring of internal equipment while maintaining equipment protection
Integral top solar/drip shield
Two thermostatically controlled, long-life, high-performance fans mounted into top
All seams are fully welded and ground smooth
Solid door provides complete physical and visual protection
Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
Perforated, vented base with internal, expanded metal, serviceable filter
One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, adjustable front-to-back within the center section of the cabinet
Key-locking wing knob provides access control to the cabinet, two keys are included with each cabinet
Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
Door, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
Additional rack angles in tapped- or square-hole versions can be added to the cabinet
Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
