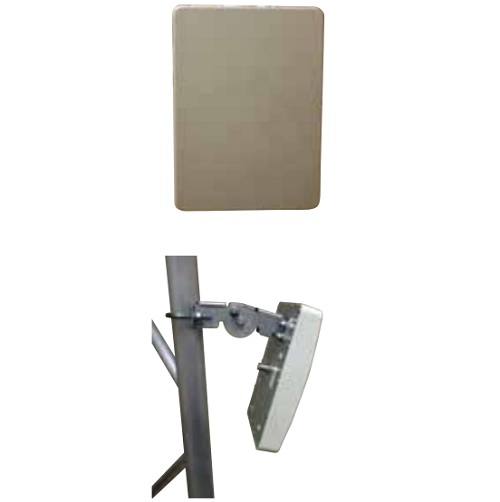

PCTEL PLTE7027S-I Directional LTE Antenna
Normally In Stock
Code: 21685
Pctel PLTE7027S-I Directional Panel Antenna with LTE 4G MIMO multiband coverage 689-960 MHz and 1710-2170 and 2170-2700 MHz Frequency Range and 6.5-8 dBi gain. 1 N (female) connection and Pole or Wall mount option. VenU PIM rated Single POl with off-white IP67 waterproof design made with UL 94VHB ASA. MIMO broadcast for DAS, ODAS, and Small Cell applications.
Condition: New
Usually ships Same Day or Next Day$392.18
Sale Price
$326.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Pctel PLTE7027S-IDirectional Panel Antenna with LTE 4G MIMO multiband coverage 689-960 MHz and 1710-2170 and 2170-2700 MHz Frequency Range and 6.5-8 dBi gain. 1 N (female) connection for connecting to different bands broadcast with PIM rated: -153 dBc @ 2x43 dBm (20 W) carriers Ideal for industrial wireless applications for Cellular, Data, and WiFi applications. IP67 housing is vented and waterproof for outdoor. Includes heavy duty mount for mast or wall mounting. 9.8"L x 7.2"W x 2" D rated for 125 mph wind. <2.0:1 VSWR, 50 ohms, ~80° Azimuth Half Power Beamwidth, ~95° Elevation Half Power Beamwidth.
Specifications
Antenna Cable Length
No Cable
Antenna Polarization
Horizontal
Antenna Polarization
Vertical
Antenna Mount
Pole Mount
Antenna Frequency
LTE (690-2700 Mhz)
Antenna Mount
Wall Mount
Antenna Composition
Polycarbonate
Antenna Gain
6.5 Dbi
Component
Antenna
Manufacturer
PCTEL
Sub Component
Panel
Antenna Connector End
N (Female)
Antenna Number of Connections
1
