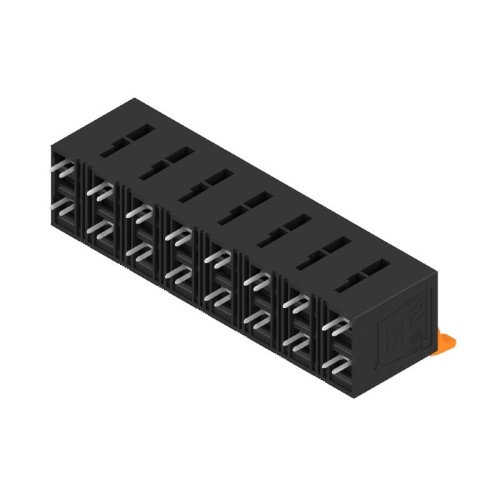

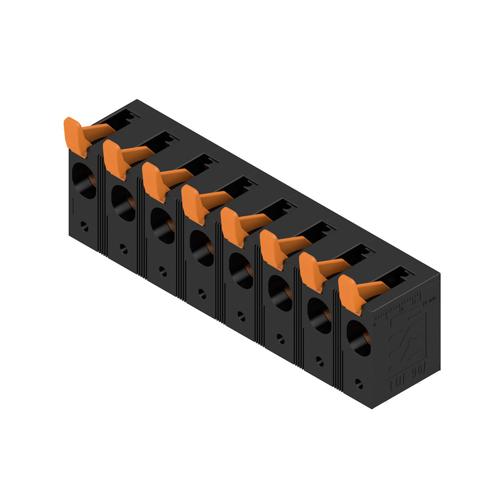

Weidmuller 2491950000 PCB Terminal - 16 mm² 61 Amp
Normally In Stock
Code: 208490
Weidmuller 2491950000 - 61 Amp - 600 V - Push In With Actuator - Black - 16 mm² Cross-section (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships within 4 weeks. Call for ship time.$65.58
Sale Price
$54.65
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 2491950000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Connector Color
Black
Connector protection
IP20
Manufacturer
Weidmuller
Component
PCB Terminal
Connector Size (Cross-section)
16 mm²
Connector Material
E-Cu
Connection Type
Push In With Actuator
Connector Amperage
61 Amp
Connector Voltage
600 Volt
Number of Poles
8 Pole
Features
The sturdy, direct connection for extreme current and voltage requirements in all power electronics applications such as solar inverters, frequency converters, servo-controllers and power supplies.
