Code: 205055

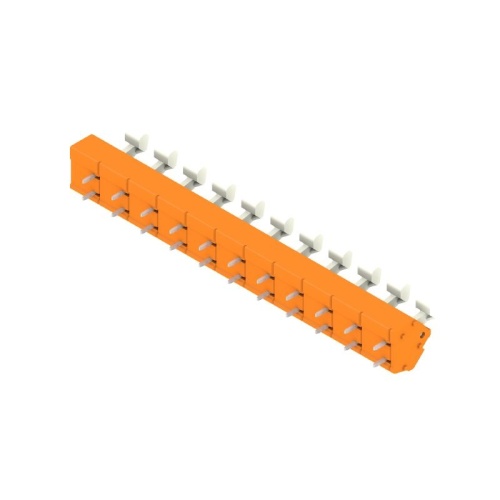

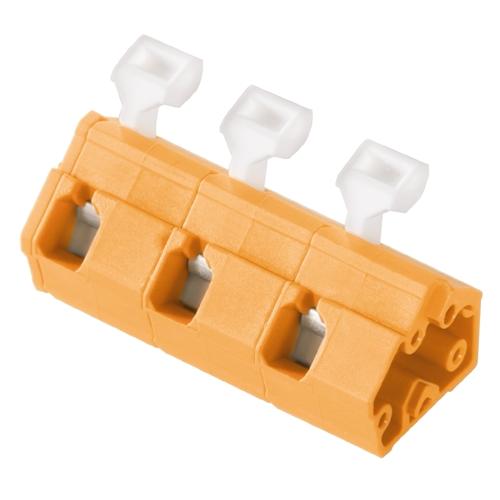

Weidmuller 1954020000 PCB Terminal - 2.5 mm² 15 Amp
Normally In Stock
Weidmuller 1954020000 - 15 Amp - 300 V - Tension Clamp Connection With Actuator - Orange - 2.5 mm² Cross-section (MUST BUY IN PACKS OF 100)
Condition: New
Usually ships within 4 weeks. Call for ship time.$6.13
Sale Price
$5.11
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1954020000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Terminal Block Voltage Rating
300 Volt
Terminal Block Component Color
Orange
Terminal Block Amperage
15 Amp
Manufacturer
Weidmuller
Component
PCB Terminal Block
Terminal Block Connection Method
Tension Clamp Connection With Actuator
Features
The compact installation terminal for the standard wire cross-section size of 2.5mm².

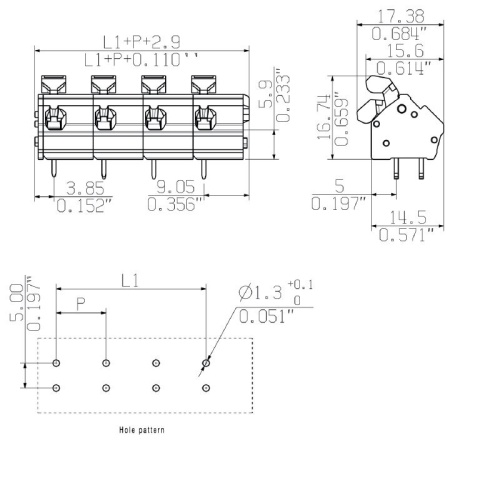

Tension clamp connection with a 135° outlet direction, in variable pitch: 10.00 - 10.16 mm (1 part with 2 pitches).

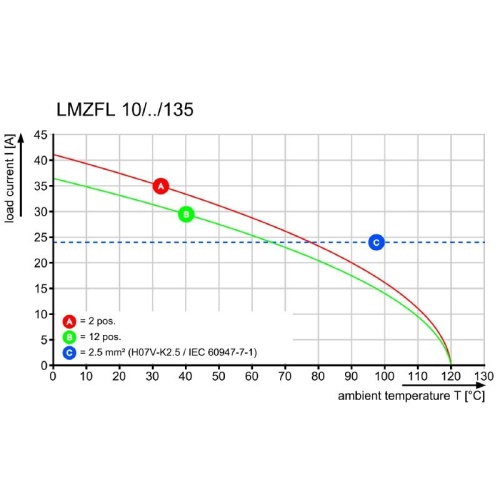

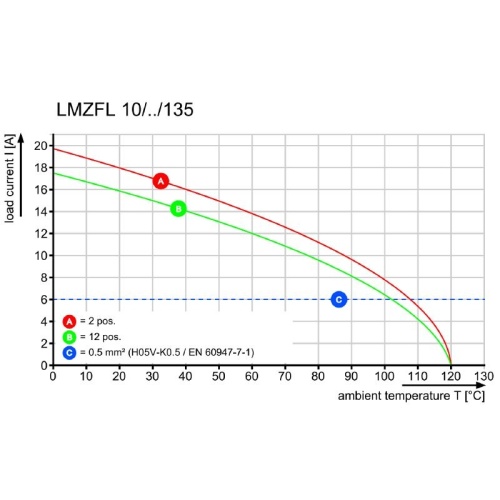

Rated data: 24A at 40°C / 1000V (IEC) or 15A / 300V (UL) 0.13 - 2.5 mm² (IEC) / 26 - 14 AWG (UL) Flammability class according to UL 94: V0 Application benefits: Safe: ATEX certification Ex II 2GD / Ex e II (KEMA07 ATAEX0047U) optional Temperature resistant: long-term resistance up to 120°C provided by high-performance Wemid insulation material Adaptable: simple pitch adaptation from 10.00 to 10.16 mm (0.400 inch) Convenient: optional lever for simple opening of terminal point
