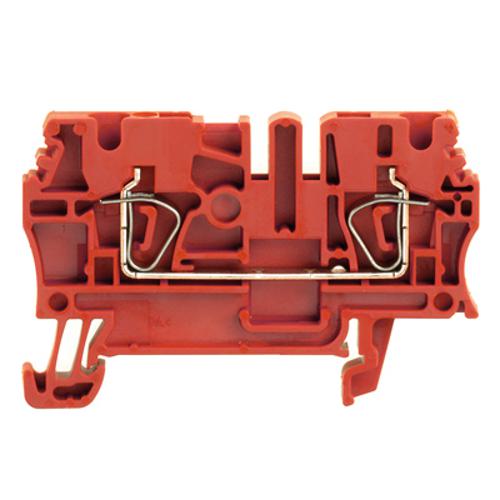

Weidmuller 1683260000 Feed-Through Terminal Block
Normally In Stock
Code: 197354
Weidmuller 1683260000 - Tension Clamp Connection - 24 Amp - 2 Connections - 800 Volt - Red - 5.1 mm Wide (MUST BUY IN PACKS OF 100)
Condition: New
Usually ships within 4 weeks. Call for ship time.$2.29
Sale Price
$1.91
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Weidmuller 1683260000 - Introducing Weidmuller Feed-Through Terminal Blocks, the ultimate solution for secure and efficient electrical connections. These high-quality terminal blocks are expertly engineered to streamline your wiring process, providing a reliable connection point for various electrical components. With their robust design and exceptional conductivity, Weidmuller feed-through terminal blocks ensure optimal signal transmission while minimizing the risk of downtime or signal loss. Featuring a user-friendly design and easy installation, these terminal blocks are suitable for a wide range of applications, from industrial automation to building installations.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Red
Terminal Block Amperage
24 Amp
Terminal Block Width
5.1 mm
Component
Terminal Block
Sub Component
Feed-Through Terminal Block
Manufacturer
Weidmuller
Terminal Block Connection Method
Tension Clamp Connection
Features
To feed through power, signal, and data is the classical requirement in electrical engineering and panel building.
The insulating material, the connection system and the design of the terminal blocks are the differentiating features.
A feed-through terminal block is suitable for joining and/or connecting one or more conductors.
They could have one or more connection levels that are on the same potential or insulated against one another.
