Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

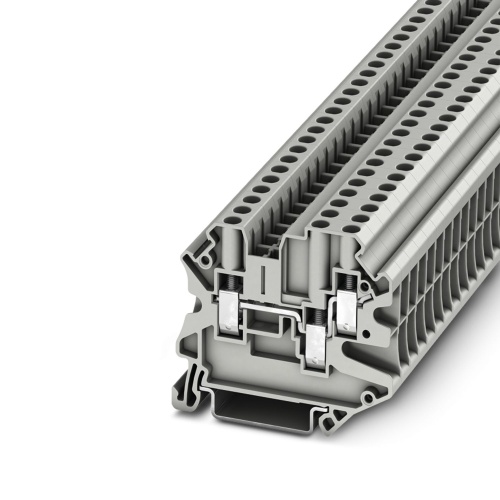

Phoenix Contact 3000608 Feed-through terminal block UT 4-TWIN HV
Normally In Stock
Code: 19389
UT 4-TWIN HV Phoenix Contact 3000608 Phoenix Contact UT 4-TWIN HV. Terminal Block 6.2mm Gray 3 Conductor Single through screw connection, 1000V, 39A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.90
Sale Price
$2.42
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3000608 A feed-through terminal block features a nominal voltage of 1000 V and a maximum current rating of 32 A, accommodating three connections via screw fasteners. The cross-sectional area ranges from 0.14 mm2 to 6 mm2, with one level of mounting available in two specified configurations (NS 35/7,5 and NS 35/15), and the terminal block is mounted using the NS 35/7,5 and NS 35/15 types, while being a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3000608 CAD data International.dxfPhoenix 3000608 CAD data International.pdfPhoenix 3000608 CAD data International.stpPhoenix 3000608 CAD Drawing.zipPhoenix 3000608 Certification English.pdfPhoenix 3000608 Certification International.pdfPhoenix 3000608 Manufacturers declaration English.pdfPhoenix 3000608 Manufacturers declaration International-2.pdfPhoenix 3000608 Manufacturers declaration International.pdfPhoenix 3000608 Safety note English.pdfPhoenix 3000608 Spec Sheet.pdfPhoenix 3000608 Tender Text English.zipPhoenix 3000608 User instructions for the Ex Area English.pdfPhoenix 3000608 User Manual.pdf
