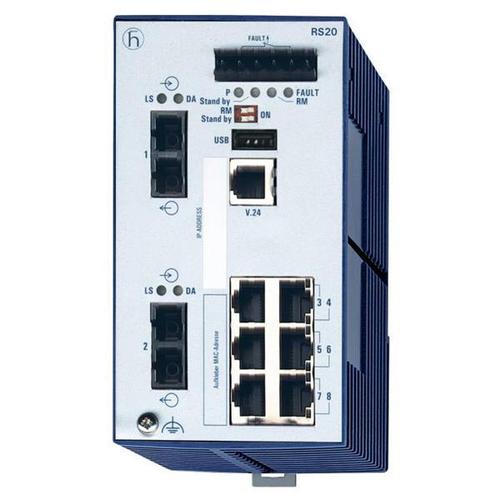

Hirschmann 943434003 RS20-0800M2M2SDAE
Normally In Stock
Code: 18619
Hirschmann 943434003 RS20-0800M2M2SDAE Mananaged Industrial Ethernet Rail Switch with 6 RJ45 Fast (100 Mbps) Copper Ports
Condition: New
Usually ships Same Day or Next Day$4065.28
Sale Price
$3387.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hirschmann 943434003 RS20-0800M2M2SDAE Managed Switch with 6 RJ45 Fast Copper ports and 2 Fiberoptic Multimode SC uplink ports . Operating Voltage of 9.6-60 VDC & 18-30 VAC. Software Layer 2 Enhanced and fanless design with Enhanced management. DIN rail mount. Operating Temperature of 32F-140F. Approvals CE, cUL508, ISA12.12.01, Class 1 Div 2.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Fiber Ports Multi Mode Fast (100 Mbps)
2 SC Multi Mode
Switch Voltage Input
12 VDC
Switch Voltage Input
24 VAC
Switch Management
Managed
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch All Ports
6 Fast Copper RJ45-2 Fast Fiber SC Multi
Manufacturer
Hirschmann
Line
RS20
Component
Managed Ethernet Switch
Features
Available in 4/8/9/16/17/24 and 25x100 Mbps ports
Fully managed (web, SNMP and CLI) – VLAN, IGMP snooping (multicast filtering), port mirroring, port control, port security, link alarms, broadcast limiter, traffic diagnostics, ring redundancy and much more
Fiber ports are available in multimode and/or singlemode
Dual power inputs and fault relay
USB port for configuration backup/restore and fast device replacement
Std. 0°C to +60°C (–40°C to +70°C, conformal coating available)
Differentiator between similar switches listed is the firmware level/features. See bottom of page 5 (E is Enhanced, P is Professional)
Downloads
Hirschmann 943434003 CLI Reference Manual L2P.pdfHirschmann 943434003 GUI Reference Manual L2P.pdfHirschmann 943434003 Spec Sheet.pdfHirschmann 943434003 User Manual Basic Configuration L2P.pdfHirschmann 943434003 User Manual Internet Protocols.pdfHirschmann 943434003 User Manual Redundancy Configuration L2P.pdf
