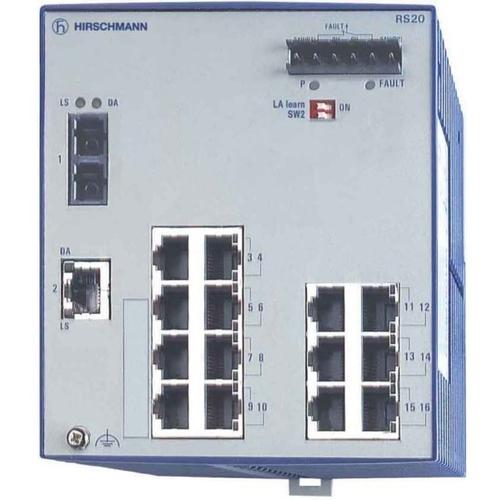

Hirschmann 943434051 RS20-1600S2T1SDAU Unmanaged Switch
Normally In Stock
Code: 18588
Hirschmann 943 434-051 RS20-1600S2T1SDAU Unmanaged Industrial Ethernet Rail Switch with 16 ports including 15 Fast Copper ports RJ45 (100 Mbps) and 1 ast Fiber Single-mode SC ports
Condition: New
Usually ships Same Day or Next Day$4466.56
Sale Price
$3722.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hirschmann 943434051 RS20-1600S2T1SDAU Unmanaged Industrial ETHERNET Rail Switch with store and forward switching. Includes 15 RJ45 copper ports with auto-crossing, auto-polarity and auto-negotiation and 1 Fast (10/100) SC Fiber port Singlemode. One of the fast copper and one fast fiber port are uplink ports. Operating Temperature of 32F-140F. Operating Voltage of 12,24,48 VDC and 24 VAC. Approvals CE, cUL508, ISA12.12.01, Class 1 Div 2.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 8 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 9 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 10 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 11 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 12 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 13 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 14 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 15 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Voltage Input
12 VDC
Switch Voltage Input
24 VAC
Switch POE Ports
No POE Ports
Switch Total Ports
16
Switch Copper Ports Fast (100 Mbps)
15 RJ45 Ports
Switch Fiber Ports Single Mode Fast (100 Mbps)
1 SC Single Mode
Switch All Ports
15 Fast Copper RJ45-1 Fast Fiber SC Single
Manufacturer
Hirschmann
Line
RS20
Component
Unmanaged Ethernet Switch
Features
From 8 up to 25 ports Fast Ethernet with options for up to 3x fi ber ports or up to 24 fast Ethernet and option for 2 Gigabit Ethernet uplink ports SFP or RJ45 redundant power inputs via dual 24 V DC
Fault relay (triggerable by loss of one power input and/or the loss of the link(s) specifi ed)
Auto-negotiating and auto crossing
Variety of connector options for Multimode (MM) and Singlemode (SM) fi ber optic ports
Choice of operating temperatures and conformal coating (standard is 0°C to +60°C
With -40°C to +70°C also available)
And variety of approvals including IEC 61850-3
IEEE 1613
EN 50121-4 and ATEX 100a Zone 2
