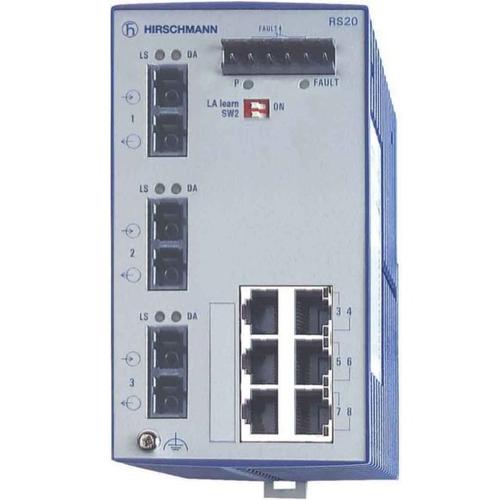

Hirschmann 943434059 RS20-0900MMM2TDAU Unmanaged Switch
Normally In Stock
Code: 18575
Hirschmann 943 434-059 RS20-0900MMM2TDAU Unmanaged Industrial Ethernet Rail Switch (Extended Temperature) with 9 ports including 6 Fast Copper ports
Condition: New
Usually ships Same Day or Next Day$5231.22
Sale Price
$4359.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hirschmann 943434059 RS20-0900MMM2TDAU Unmanaged Industrial ETHERNET Rail Switch with store and forward switching. Includes 6 RJ45 copper ports with auto-crossing, auto-polarity and auto-negotiation and 3 Fast (10/100) SC Fiber ports Multimode. Operating Temperature of -40F-158. Operating Voltage of 24 V DC redundant. Approvals CE, cUL508, ISA12.12.01, Class 1 Div 2.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Switch Fiber Ports Multi Mode Fast (100 Mbps)
3 SC Multi Mode
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch Total Ports
9
Switch All Ports
6 Fast Copper RJ45-3 Fast Fiber SC Multi
Manufacturer
Hirschmann
Line
RS20
Component
Unmanaged Ethernet Switch
Features
From 8 up to 25 ports Fast Ethernet with options for up to 3x fi ber ports or up to 24 fast Ethernet and option for 2 Gigabit Ethernet uplink ports SFP or RJ45 redundant power inputs via dual 24 V DC
Fault relay (triggerable by loss of one power input and/or the loss of the link(s) specifi ed)
Auto-negotiating and auto crossing
Variety of connector options for Multimode (MM) and Singlemode (SM) fi ber optic ports
Choice of operating temperatures and conformal coating (standard is 0°C to +60°C
With -40°C to +70°C also available)
And variety of approvals including IEC 61850-3
IEEE 1613
EN 50121-4 and ATEX 100a Zone 2
