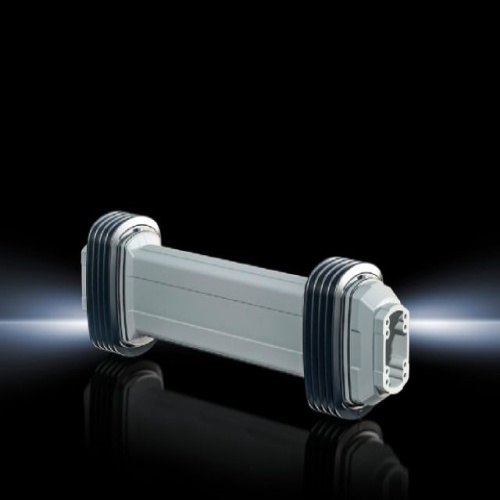

Rittal 6212120 Support Profile, Height-Adjustable for support arm systems
Normally In Stock
Code: 181773
Rittal 6212120 Support Profile, Height-Adjustable for support arm systems H: " W: Length: 31.1 "
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
$5421.98
Sale Price
$4518.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

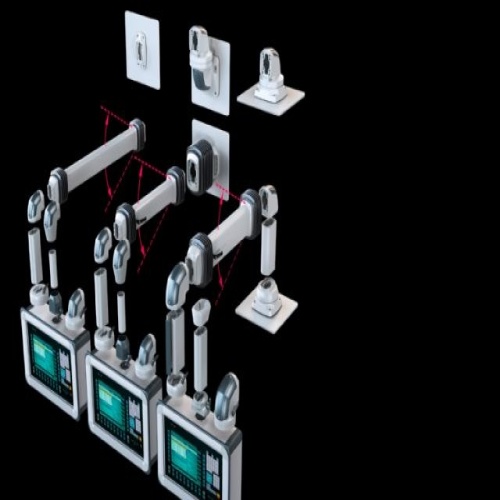

Rittal 6212120 Command Panels/ Support Enclosure, The new height-adjustable support section always provides the right view of the key parameters in human/machine interaction. The system can be fitted directly to the components of the CP 120 support arm system on the wall side, and to the CP 120 support arm system on the enclosure side without further adaption., Height: ", Width: Length: 31.1 "
Specifications
Manufacturer
Rittal
Component
Support Profile
Features
Supply Includes: Assembly parts
Benefits: Support arm holds securely in any position Additional fixing with clamping lever if required Precise coordination to the suspended load via an adjusting screw at the front of the support section Adjusting screw can be accessed without dismantling any components Large cable tray and cable cable routing at the rotation points for safety Removable side panel for easy access to cable entry Tilting angle of the mounted enclosure is identical in every height position Cables with connectors such as DVI, VGA are easily inserted Broad weight range from 4 to 60 kg with three systems. (Weight range applies to configured enclosure and vertical support section.)
Note: In combination with support support section, height adjustable observe: When using an intermediate hinge, the height-adjustable support section should always be inserted in the closest horizontal position to the enclosure.
Application: For tall and short operators For seated and standing work
