Phoenix Contact 3260166 High-current terminal block PTPOWER 95 P BU
Normally In Stock
Code: 18166
PTPOWER 95 P BU Phoenix Contact 3260166 Phoenix Contact PTPOWER 95 P BU. High-Current Terminal Block with test connection 25mm Blue Single through Push-In Connection 1up to 500V, 232A, 3/0-4AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$53.21
Sale Price
$44.34
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

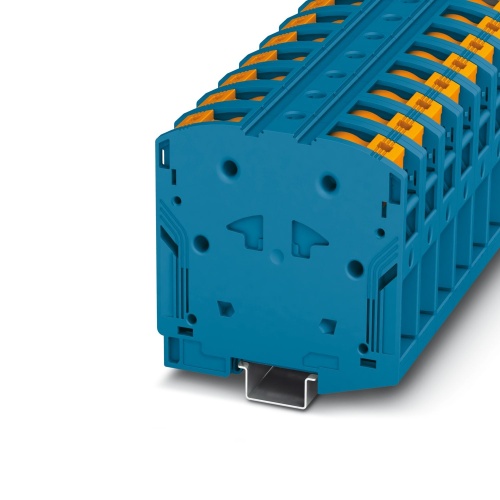

Phoenix Contact 3260166 The terminal block features a high-current design with a test socket, and it can handle a nominal voltage of 1000 V and a maximum current of 232 A. It has two connection points and one position for installation, using the PowerTurn connection method, with cross-sectional areas ranging from 25 mm2 to 95 mm2. The block is mounted on an NS 35/15 type bracket in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
25 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Min Wire Size
4
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
The compact design enables wiring in a confined space

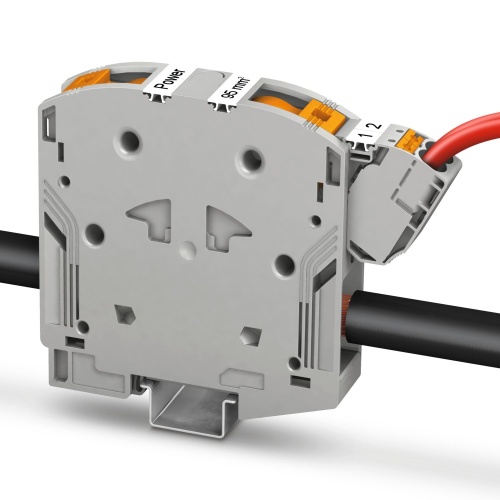

In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

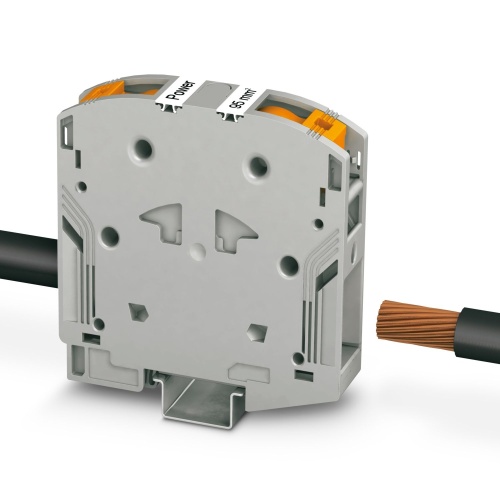

Quick and easy connection is now also possible for large conductors with the high-current terminal block
Tested for railway applications
