Code: 18165

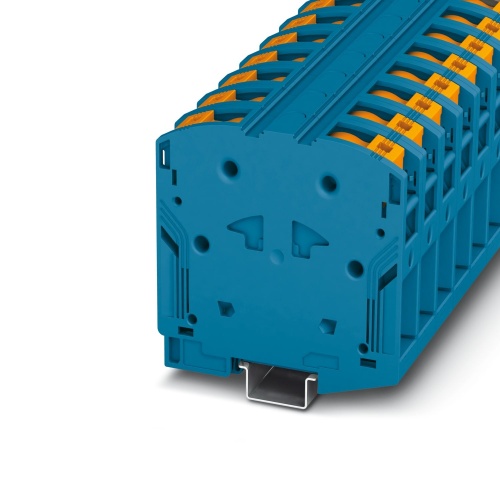

Phoenix Contact 3260103 High-current terminal block PTPOWER 95 BU
Normally In Stock
PTPOWER 95 BU Phoenix Contact 3260103 Phoenix Contact PTPOWER 95 BU. High-Current Terminal Block 25mm Blue Single through Push-In Connection 1up to 500V, 232A, 3/0-4AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$43.30
Sale Price
$36.08
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260103 The terminal block features a high-current design with a nominal voltage of 1000 V and a maximum current rating of 232 A. It has two connections and one position available for use, utilizing the PowerTurn connection method. The cross-sectional area ranges from 25 mm2 to 95 mm2, allowing for flexibility in cable sizing. This terminal block is mounted using an NS 35/15 type mounting system and has a distinctive blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
25 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Model Type
PTPOWER
Features

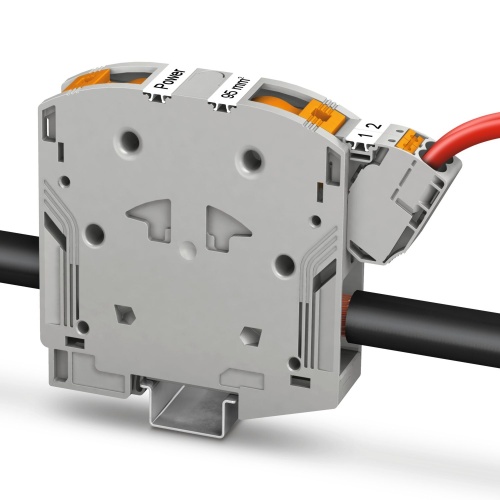

In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space

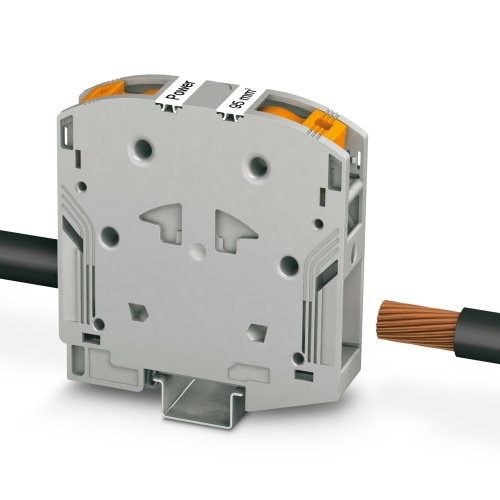

Quick and easy connection is now also possible for large conductors with the high-current terminal block
Tested for railway applications
Downloads
Phoenix 3260103 Application Note International.jpgPhoenix 3260103 CAD data International.dxfPhoenix 3260103 CAD data International.pdfPhoenix 3260103 CAD data International.stpPhoenix 3260103 CAD Drawing.zipPhoenix 3260103 Certification English.pdfPhoenix 3260103 Certification International.pdfPhoenix 3260103 Manufacturers declaration International-2.pdfPhoenix 3260103 Manufacturers declaration International-3.pdfPhoenix 3260103 Manufacturers declaration International.pdfPhoenix 3260103 Package Slip International.pdfPhoenix 3260103 Safety note English.pdfPhoenix 3260103 Spec Sheet.pdfPhoenix 3260103 Tender Text English.zipPhoenix 3260103 User instructions for the Ex Area International.pdf
