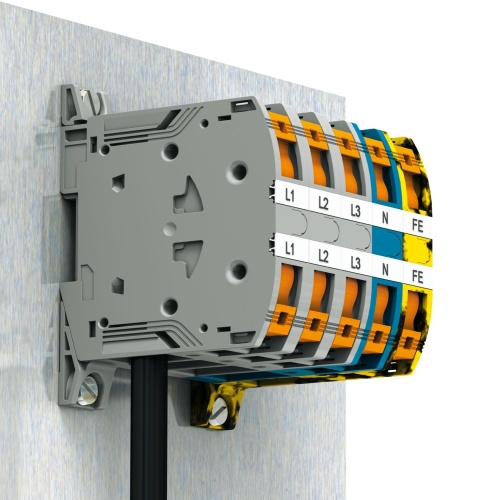

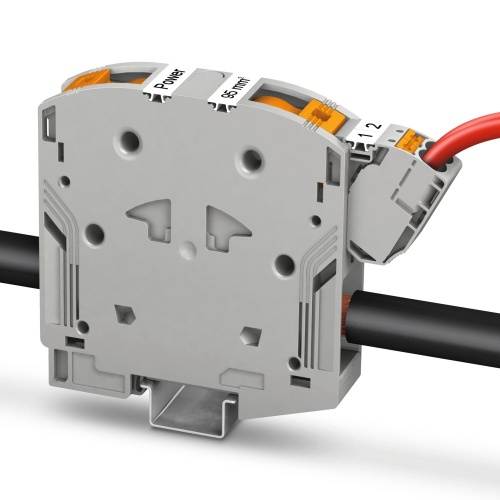

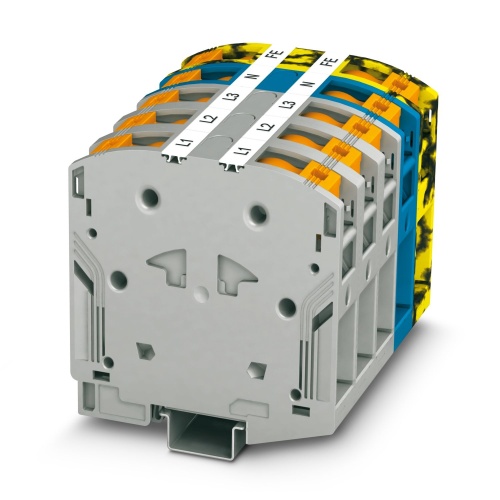

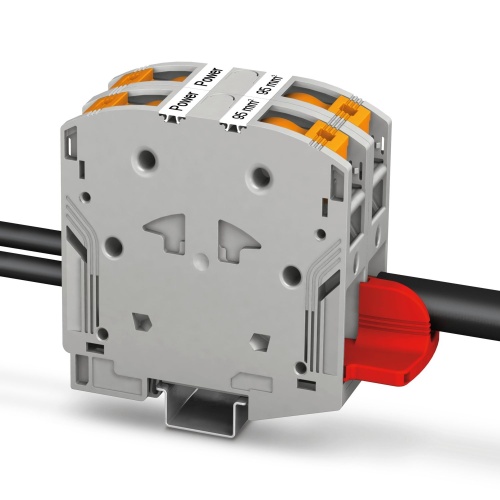

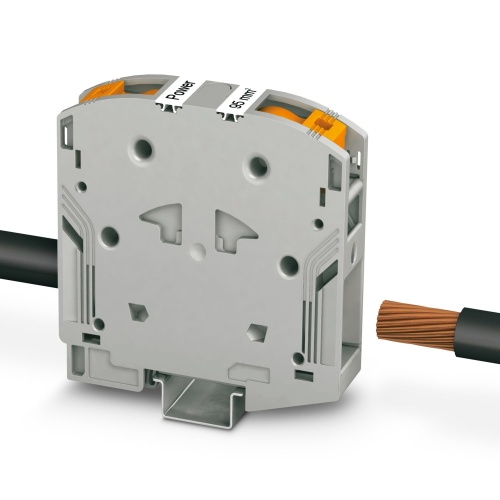

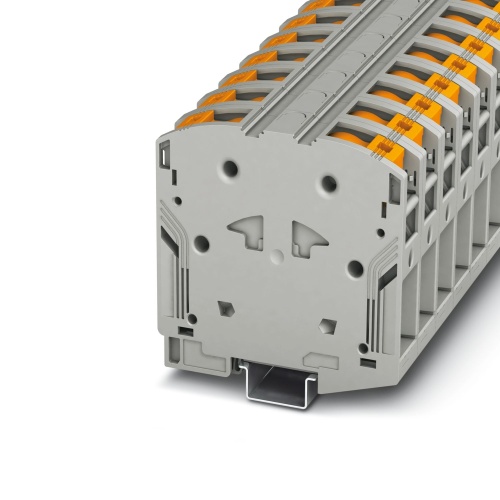

Phoenix Contact 3260100 High-current terminal block PTPOWER 95
Normally In Stock
Code: 18163
PTPOWER 95 Phoenix Contact 3260100 Phoenix Contact PTPOWER 95. High-Current Terminal Block 25mm Gray Single through Push-In Connection 1up to 500V, 232A, 3/0-4AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$40.44
Sale Price
$33.70
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3260100 A terminal block with a high-current rating is specified, with a nominal voltage of 1000 V and a maximum current capacity of 232 A. The block has two connection points and can accommodate one position for connecting power lines, utilizing the PowerTurn connection method. Its cross-sectional area ranges from 25 mm² to 95 mm², and it is mounted using an NS 35/15 type of mounting system with a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
25 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Terminal Block Connection Method
Power-Turn Connection
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features
In addition to using the existing test pick-off, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
Quick and easy connection is now also possible for large conductors with the high-current terminal block
Tested for railway applications
