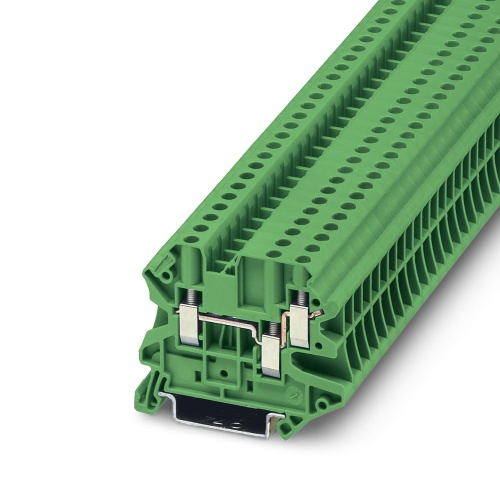

Phoenix Contact 3044367 Feed-through terminal block UT 4-TWIN GN
Normally In Stock
Code: 18087
UT 4-TWIN GN Phoenix Contact 3044367 Phoenix Contact UT 4-TWIN GN. Terminal Block 6.2mm Green 3 Conductor Single through screw connection, up to 500V, 41A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$3.20
Sale Price
$2.67
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044367 A feed-through terminal block has specifications of 500 V nominal voltage and a maximum current rating of 32 A, with three connections made using screw connections. The rated cross-section is 4 mm2, allowing for varying sizes from 0.14 mm2 to 6 mm2, and it can be mounted using the NS 35/7,5 or NS 35/15 mounting type in a green color configuration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
User-friendly implementation of all potential branching tasks
Tested for railway applications
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
Downloads
Phoenix 3044367 CAD data International.dxfPhoenix 3044367 CAD data International.pdfPhoenix 3044367 CAD data International.stpPhoenix 3044367 Certification English.pdfPhoenix 3044367 Certification International.pdfPhoenix 3044367 Manufacturers declaration English.pdfPhoenix 3044367 Manufacturers declaration International-2.pdfPhoenix 3044367 Manufacturers declaration International-3.pdfPhoenix 3044367 Manufacturers declaration International.pdfPhoenix 3044367 Safety note English.pdfPhoenix 3044367 Spec Sheet.pdfPhoenix 3044367 Tender Text English.zipPhoenix 3044367 User instructions for the Ex Area International.pdfPhoenix 3044367 User Instructions for the Ex Area.pdf
