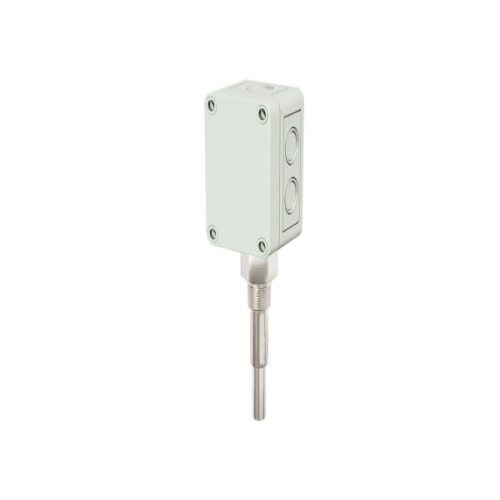

The ACI Nickel Immersion Series features a ¼” diameter stainless steel probe with two, 14 inch22 AWG Etched Teflon colored lead wires to differentiate the many different sensor types

Thesensors in this series are manufactured using ACI’s proven double encapsulation process toeliminate the effects of moisture upon the sensors and to increase the thermal response timesusing our high quality, thermally conductive epoxy

The immersion sensors come standardwith a welded thermowell “-I” version but can also be ordered without the thermowell “-INW”version

The “-INW” Version includes a standard ½” NPS (National Pipe Straight) process threadto be used with an optional machined thermowell or in an existing thermowell application

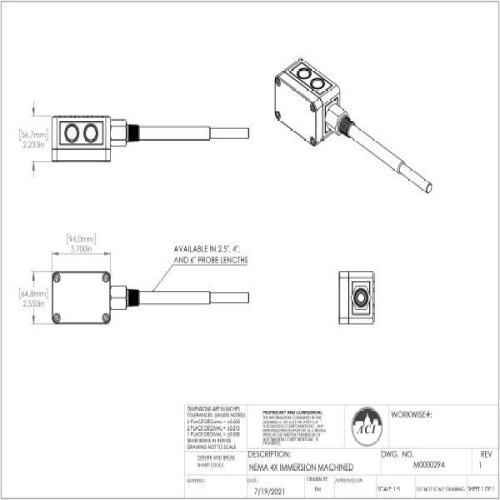

Thisseries can be ordered with optional NEMA rated weather proof enclosures and NIST Certificatesas referenced on the back of the product data sheet

Please contact ACI for more informationregarding this sensor or if you would like to discuss your application in further detail.
