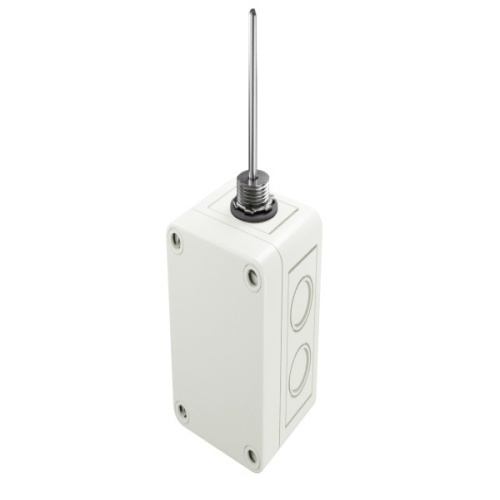

ACI 148528 A/TTM1K-INW-2.5"-2-4X Transmitter,1K Ohm Immersion RTD
Normally In Stock
Code: 179509
ACI 148528 Transmitter w/ 1,000 Ohm RTD (NIST Cert), Immersion, No Well, 2.5", NEMA 4X Enclosure, 2-10 VDC Output
Condition: New
Backordered with 10-12 week lead time$183.60
Sale Price
$153.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Transmitter Immersion Series features a two-wire, 4 to 20 mA loop powered output signal with optional three-wire voltage output signal available. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certfied Calibration equipment. We recommend the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to keep noise from being introduced onto the signal lines. The sensor assemblies are manufactured using Etched Teflon colored lead wires and ACI’s proven double encapsulation process to eliminate the effects of moisture on the sensors as well as increased response times from our high quality, thermally conductive epoxy. The immersion sensors “-I-” include a welded thermowell but can be ordered without the thermowell “-INW” version. The “-INW” includes a standard ½” NPS process thread to be used with a machined thermowell or existing thermowell application. Optional NEMA/IP rated weather proof enclosures and NIST Calibration
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Mounting
Immersion
(Instrument-Sensor) Type
Transmitter-1K Ohm
Features
The ACI Transmitter Immersion Series features a two-wire, 4 to 20 mA loop powered output signal with optional three-wire voltage output signal available
All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment
We recommend the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to keep noise from being introduced onto the signal lines
The sensor assemblies are manufactured using Etched Teflon colored lead wires and ACI’s proven double encapsulation process to eliminate the effects of moisture on the sensors as well as increased response times from our high quality, thermally conductive epoxy
The immersion sensors “-I” include a welded thermowell but can be ordered without the thermowell “-INW” version
The “-INW” includes a standard ½” NPS process thread to be used with a machined thermowell or existing thermowell application
Optional NEMA/IP rated weather proof enclosures and NIST Calibration Certificates are available when ordering the A/TTM Series transmitters as referenced in the ordering grid on the back of the product data sheet
For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters which includes a 3 or 5 Point NIST Calibration Certificate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system.
