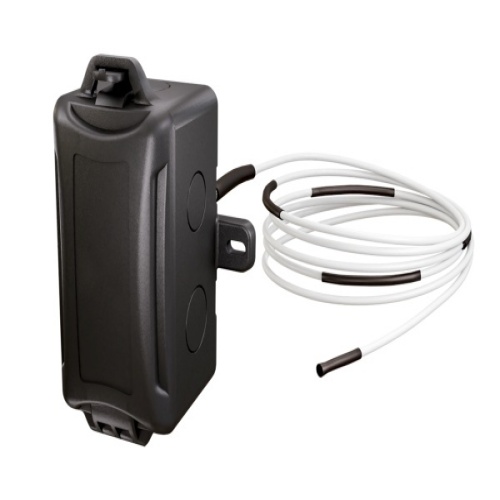

The BN Series Flexible Averaging networked temperature sensors are a cost eective, single point native BACnet™ or Modbus sensing solution designed to reduce the need for additional input modules or building management controllers when a limited number of input points are available

The BN series oers both BACnet™ and Modbus protocols in one device, providing great exibility with various systems

The BTL Certication provides condence that these sensors may be used in any new or retrot installation using a BACnet™ MS/TP controller with third party BACnet™ devices

Each sensor features a 18 AWG Plenum rated cable that is manufactured with 4 or 9 sensing points determined by the length of the sensing element

The averaging sensors provide a better average temperature of the air inside the duct when compared to a single point duct sensor

The exible averaging sensors are limited to applications where operating temperatures are limited and where high humidity, chemical resistance and UV Light Air Treatment Systems aren’t required

Each of the sensing elements is protected by a dual wall adhesive lined heat shrink tubing to provide a level of moisture protection to the sensing elements

The sensor length should be determined by the dimensional size of your duct

These sensors incorporate a conformally coated printed circuit board for long-term reliability

The ABS enclosure features an easy open latch for easy access to the wiring and internal dip switches for quick setup and installation

Please contact ACI for more information regarding the BN Series communicating sensors.
