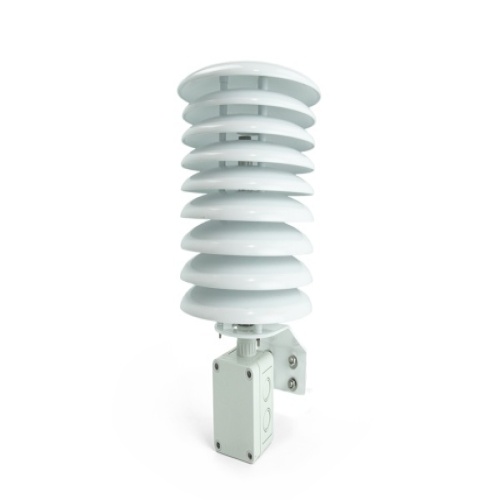

ACI 146607 A/RH2-AN-O-SUN-NIST Outside Air Humidity
Normally In Stock
Code: 178634
ACI 146607 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 10,000 Ohm Thermistor (Type III), Sun Shield, NIST Cert
Condition: New
Backordered with 10-12 week lead time$669.31
Sale Price
$557.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Sun Shield is a reliable solution for protecting both Temperature and Relative Humidity sensors when mounted in a location where an overhang or shade is unavailable. It consists of nine (9) molded, white plastic plates which are used to reduce the thermal effect of the sun and increasing the air-flow between the plates. The Sun Shield also provides an added level of protection for the sensors from rain and snow. The Sun Shield is available with our +/-2% RH transmitter, any of our standard temperature sensors, and has field selectable outputs of 4-20mA, 0-5VDC and 0-10VDC (for RH).
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
2%
Features
The ACI Sun Shield is a reliable solution for protecting relative humidity sensors when mounted in a location where an overhang or shade is unavailable
It consists of nine (9) molded, white plastic plates which are used to reduce the thermal effect of the sun and increasing the air flow between the plates
The Sun Shield also provides an added level of protection for the sensors from rain and snow
The Sun Shield is available with our ±2 % RH transmitter, any of our standard thermistors, and has field selectable outputs of 4-20 mA, 0-5 VDC and 0-10 VDC
Three point NIST Calibration Certificates are available.
