Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
ACI 146372 TUC2-10-F2-XX-XX-X-X-X-X
Normally In Stock
Code: 178589
ACI 146372 0
Condition: New
Usually ships Same Day or Next Day$214.38
Sale Price
$178.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 146372 0
Specifications
Manufacturer
ACI
Component
Temperature Sensor
Features

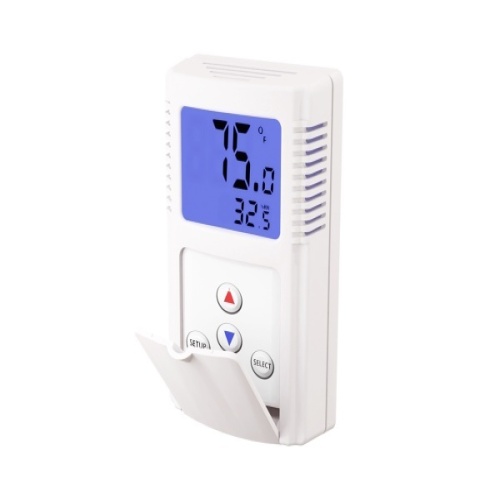

The A/TUC2 Series is a customizable sensor which features an on-board microprocessor, largebacklit LCD display, set point, override and local system status when using the OverrideFeedback option
A single or dual sensing technology is employed when ordering NTCthermistor’s due to their increased sensor resolution
The Platinum, Nickel, and Silicon RTD’s alluse a dual sensing technology due to their much lower sensor resolution
The single sensortechnology reduces the error between the displayed and measured temperature output sentto your building management system
All accuracy measurements should be measured fromthe sensor output terminals with the LCD display being used for reference purposes only dueto the rounding of the display to the nearest 0.5ºF
To eliminate errors between thetemperature shown on the LCD display and the temperature output to your buildingmanagement system, a single point temperature oset can be entered in the TUC2
These units are factory congured to your desired specicationsto reduce onsite programming
Additional features can be modied using the integral keypad and menu system, providing you with greaterexibility to meet any additional requirements
Additional features include additional Set Point congurations, Backlit Display brightness andfunctionality, Set Point Lockout, Direct and Reverse Acting Output adjustments, temperature oset, test functions and more
For additional featuresincluding Fan Speed and System Congurations, please contact ACI for more information.
