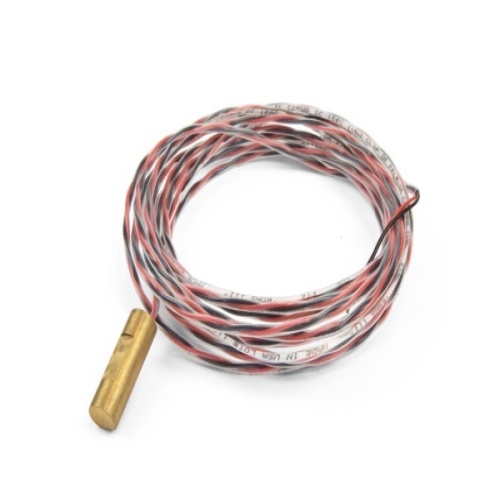

The ACI Platinum Pipe Mount Series features a 1.1” long Brass sensing element with a slight curvature on the bottom that is designed to increase the surface area and improve thermal conductivity between the pipe and sensor

Each sensor has two, 24 inch, 22 AWG Etched Teon colored lead wires to dierentiate the dierent sensor types

The three-wire “-3W” option should be ordered if using with a 3-Wire temperature transmitter or sensor conguration on your building management system or PLC (Programmable Logic Controller)

The purpose of the 3rd wire is to compensate for any external lead wire resistance that will aect the sensor output

ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD sensor

The sensors are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture upon the sensors and to improve the thermal response times with our high quality, thermally conductive epoxy

The Pipe Mount sensor should be used on pipe or coil sizes from 1/2” to 1” in diameter

A 7.5” nylon wire tie is supplied for fastening the sensor to the top of the pipe

For best accuracy and increased conduction between the pipe and the sensor, we recommend that you clean the pipe before applying thermal grease between the mating surfaces and then to insulate the sensor from the external eects of the ambient air

An optional plenum rated cable and NIST Certicate can be ordered as referenced in the ordering grid.
