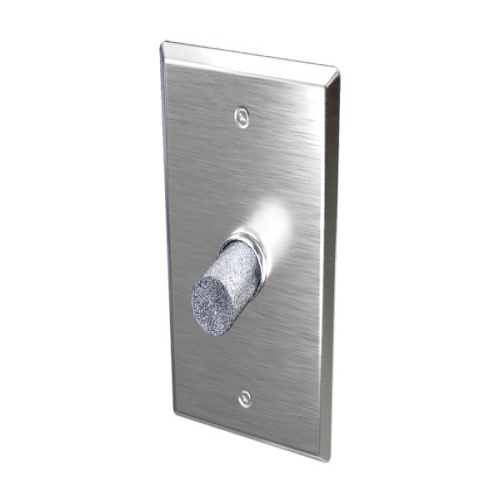

ACI 142273 A/RH3-100-3W-SP-010 Humidity
Normally In Stock
Code: 177597
ACI 142273 Relative Humidity, RH Outputs: 0-10 VDC, Wall Plate 304SS, ± 3% Accuracy, 100 Ohm RTD (Three Wires), 0-10VDC
Condition: New
Backordered with 10-12 week lead time$179.93
Sale Price
$149.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Relative Humidity Wall Plate Series utilizes a thermoset polymer capacitive sensing element with a factory applied hygroscopic filter to deliver a proportional analog voltage output signal. The hygroscopic filter provides added resistance to moisture, dust, and other chemicals for greater long-term reliability. The RH Stainless Plate transmitter features integral DIP switches for field selection of the proper output signal and supply voltage to meet your applications requirements. Each unit also contains 0%, 50%, and 100% test options to verify that the transmitter is both working and properly installed. Field calibration can be performed by using the increment and decrement calibration DIP switches without the need to replace the sensing element. These enhancements provide increased flexibility and outstanding long-term reliability. All RH Stainless Plate transmitters come standard with an attractive brushed finish stainless steel, single gang wall mounting plate and are designed to mount over a single gang junction box in the wall. The PCBs are conformally coated for added protection from moisture and other contaminants. A temporary plastic sensor cover is included to provide protection for the RH sensor from chemicals used in wash down applications. Three and Five-point NIST Calibration Certificates are available but they must be ordered separately when placing your order.
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
3%
(Instrument-Sensor) Output Signal Range
0 - 10 VDC
