Code: 177528

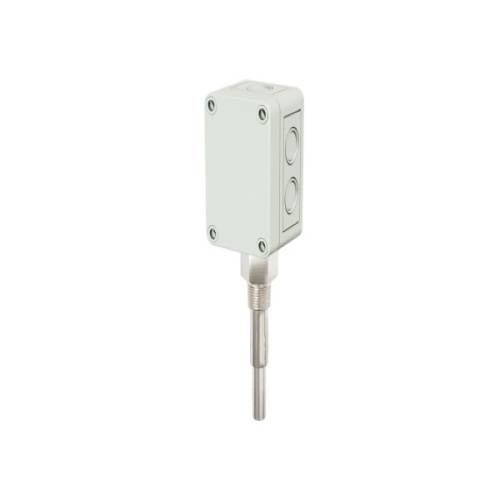

ACI 142098 A/1K-NI-IM-4"-4X Immersion RTD
Normally In Stock

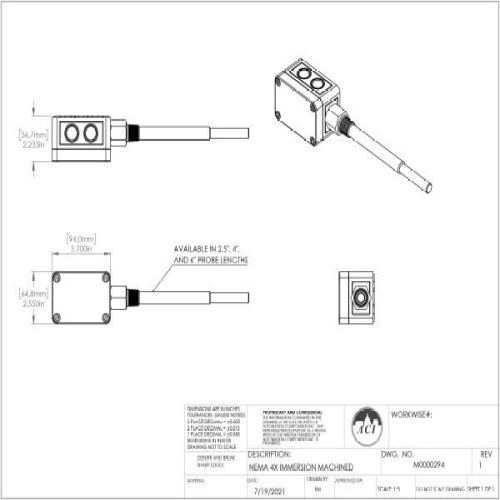

ACI 142098 1,000 Ohm Nickel RTD, Immersion, Machined Well, 4", NEMA 4X Enclosure
Condition: New
Usually ships Same Day or Next Day$115.56
Sale Price
$96.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

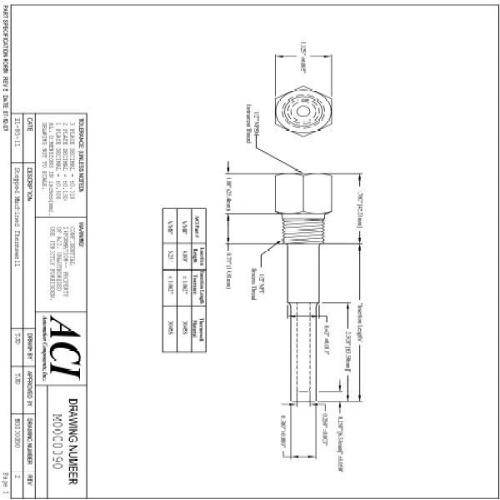

The ACI Nickel Immersion Series features a ¼” diameter stainless steel probe with two, 14” 22 AWG Etched Teflon colored lead wires depending on the probe length ordered to differentiate the sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet. ACI’s Machined Thermowells are used with temperature instruments in process systems where gas or liquid medias are used to provide a degree of protection for the sensing element when installed inside of a pipe, tank, or piece of equipment. The thermowell provides easy access for NIST Certified applications and enables users to easily replace the sensor without having to drain the entire system. Thermowells also protect the small diameter sensing probes from stresses created by high temperatures and pressures, corrosive environments, or the flow of gas or liquid medias through pipes or equipment. It is recommended to follow a Wake Frequency calculator using the ASME PTC 19.3 TW-2016 standard to help prevent vibrational destruction from damaging the thermowell. ACI’s standard thermowells are made of 304 stainless steel which ensures long lasting reliability and corrosion resistance. Optional 316 Stainless Steel is available for use in applications where higher corrosion resistance is required. This series is machined from solid bar stock to precision tolerances which provides maximum heat transfer when used with a corresponding ACI sensor. When necessary, thermal grease is available from ACI to improve the sensor’s response time. Insertion depth should be long enough to permit the entire temperature-sensitive section of the temperature probe to project into the medium being monitored, thus maximizing measurement accuracy.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Composition
Nickel
(Instrument-Sensor) Mounting
Immersion
Features
The ACI Nickel Immersion Series features a ¼” diameter stainless steel probe with two, 14 inch22 AWG Etched Teflon colored lead wires to differentiate the many different sensor types
Thesensors in this series are manufactured using ACI’s proven double encapsulation process toeliminate the effects of moisture upon the sensors and to increase the thermal response timesusing our high quality, thermally conductive epoxy
The immersion sensors come standardwith a welded thermowell “-I” version but can also be ordered without the thermowell “-INW”version
The “-INW” Version includes a standard ½” NPS (National Pipe Straight) process threadto be used with an optional machined thermowell or in an existing thermowell application
Thisseries can be ordered with optional NEMA rated weather proof enclosures and NIST Certificatesas referenced on the back of the product data sheet
Please contact ACI for more informationregarding this sensor or if you would like to discuss your application in further detail.
