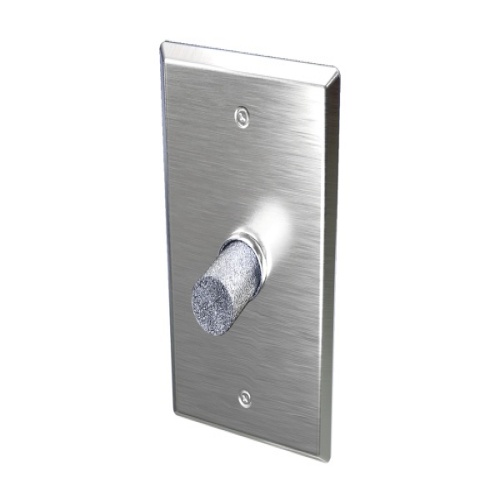

ACI 137895 A/RH2-SP-010 Wall Plate Humidity
Normally In Stock
Code: 176950
ACI 137895 Relative Humidity, RH Outputs: 0-10VDC, Wall Plate 304SS, ± 2% Accuracy, 0-10VDC Output
Condition: New
Backordered with 10-12 week lead time$221.76
Sale Price
$184.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Stainless Plate offers a higher degree of durability and can not be tampered with like some other wall mount sensor options. It is a brushed metal for a pleasing aesthetic and has some additional options including tenant override.
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
2%
(Instrument-Sensor) Mounting
Wall Plate
(Instrument-Sensor) Output Signal Range
0 - 10 VDC
Features
The ACI Relative Humidity Stainless Plate utilizes a thermoset polymer capacitive sensing element with a factory applied hygroscopic filter to deliver a proportional analog voltage output signal
The hygroscopic filter provides added resistance to moisture, dust, and other chemicals for greater long term reliability
The RH Stainless Plate transmitter features integral DIP switches for field selection of the proper output signal and supply voltage to meet your applications requirements
Each unit also contains 0%, 50%, and 100% test options to verify that the transmitter is both working and properly installed
Field calibration can be performed by using the increment and decrement calibration DIP switches without the need to replace the sensing element
These enhancements provide increased flexibility and outstanding long-term reliability

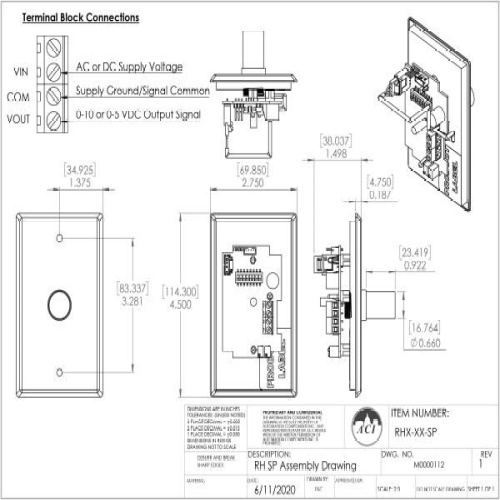

All RH Stainless Plate transmitters come standard with an attractive brushed finish stainless steel, single gang wall mounting plate and are designed to mount over a single gang junction box in the wall
The PCBs are conformally coated for added protection from moisture and other contaminants
A temporary plastic sensor cover is included to provide protection for the RH sensor from chemicals used in wash down applications
Three point NIST Calibration Certificates are available.
