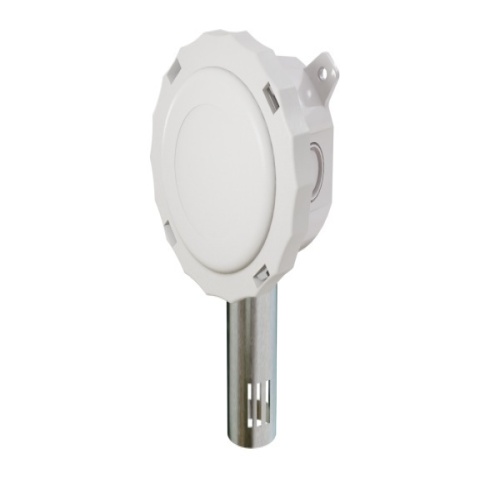

ACI 136342 A/RH1-1K-NI-O Humidity
Normally In Stock
Code: 176702
ACI 136342 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 1% Accuracy, 1,000 Ohm Nickel RTD, Euro Enclosure
Condition: New
Backordered with 10-12 week lead time$388.08
Sale Price
$323.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The A/RH Series (resistive temperature output) relative humidity transmitters utilize a capacitive sensing element to deliver a proportional analog output. The series features on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Field calibration can be performed by using the on board increment and decrement DIP switches. These enhancements provide increased flexibility and outstanding long-term performance. The A/RH Series is covered by ACI's Five (5) Year Limited Warranty.
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
1%
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
Features
The A/RH Outside Series Sensor is a Relative Humidity transmitter that can be powered with either an AC or DC supply voltage
The RH outside transmitter is eld selectable with a 4-20 mA, 0-5 VDC, or 0-10 VDC output signal that is equivalent to 0 to 100% RH
This sensor is designed for use with electronic controllers in commercial heating and cooling building management systems
All units are shipped from the factory set up for a 4-20 mA output
The transmitter can also include an optional temperature sensor for monitoring the space temperature.
