Code: 1766

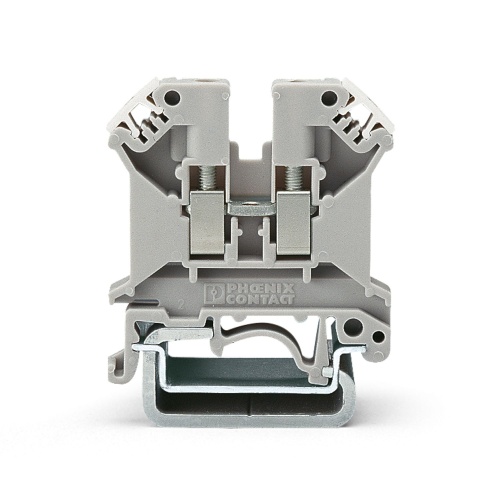

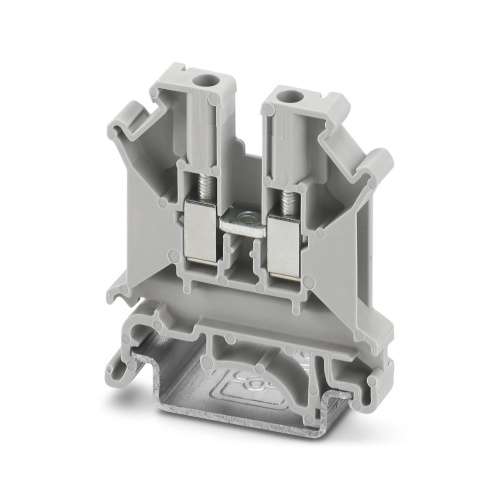

Phoenix Contact 3004362 Feed-through terminal block UK 5 N
Normally In Stock
UK 5 N Phoenix Contact 3004362 Phoenix Contact UK 5 N, Terminal Block 6.2mm Gray Single through screw connection, 10-24AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.87
Sale Price
$2.39
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3004362 A feed-through terminal block has an operating voltage of 800 V and a maximum current capacity of 32 A, accommodating two connections made via screw connection. The rated cross-sectional area for the connections ranges from 0.2 mm² to 6 mm², while the mounting type is designated as NS 35/7.5, NS 35/15, or NS 32, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Model Type
UK
Features

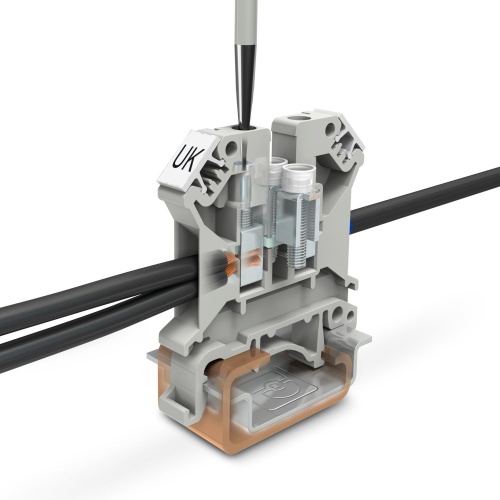

The UK universal screw terminal block series has the typical features which are decisive for practical applications

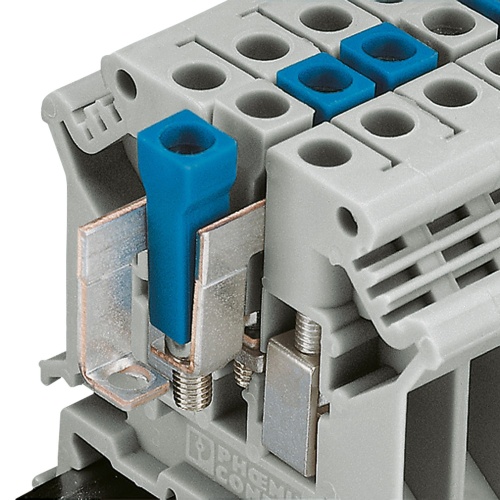

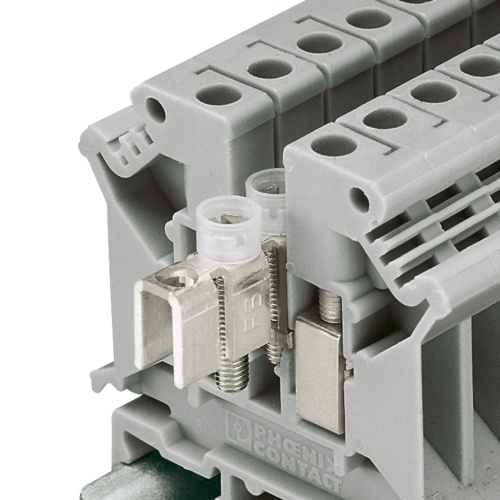

Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space
Universal foot which can be used on NS 35... and NS 32... DIN rails
Downloads
Phoenix 3004362 CAD data International.dxfPhoenix 3004362 CAD data International.pdfPhoenix 3004362 CAD data International.stpPhoenix 3004362 CAD Drawing.zipPhoenix 3004362 Certification English-2.pdfPhoenix 3004362 Manufacturers declaration English.pdfPhoenix 3004362 Manufacturers declaration International-2.pdfPhoenix 3004362 Manufacturers declaration International-3.pdfPhoenix 3004362 Manufacturers declaration International.pdfPhoenix 3004362 Product Information English.pdfPhoenix 3004362 Safety note English.pdfPhoenix 3004362 Spec Sheet.pdfPhoenix 3004362 Tender Text English.zipPhoenix 3004362 User instructions for the Ex Area International.pdf
