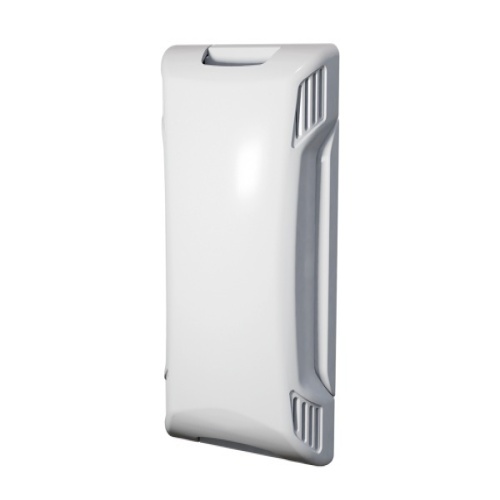

ACI 134593 A/RH3-1.8K-R2 Room Humidity
Normally In Stock
Code: 176481
ACI 134593 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Room (R2), ± 3% Accuracy, 1,800 Ohm Thermistor
Condition: New
Backordered with 10-12 week lead time$195.55
Sale Price
$162.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The ACI Relative Humidity Room Series utilizes a thermoset polymer capacitive sensing element with a factory fitted hydrophobic filter to improve its moisture resistance. The sensing elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils and common environmental chemicals are found. (For RH/Temp combination units, please see data sheet for temperature output specifications). The RH room sensors include on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Single point field calibration can be performed by using the increment and decrement calibration DIP switches to adjust your curve up or down in +/- 0.5% increments with each toggle of the corresponding switches. These enhancements provide increased flexibility and outstanding long-term reliability without the need to replace the sensors in the field. There are two enclosure options in this series which should satisfy most commercial decors. Both enclosures feature four-way air flow to minimize self-heating. Three and Five-point NIST Calibration Certificates are available and must be ordered separately when placing your order.
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
3%
Features
The ACI Relative Humidity with Thermistor Outside Air Series utilizes a thermoset polymer capacitive sensing element with factory applied hygroscopic filter to deliver a proportional analog current or voltage output signal
The hygroscopic filter provides added resistance to moisture, dust, and other chemicals for greater long term reliability
The RH Outside Air transmitter features integral DIP switches for field selection of the proper output signal and supply voltage to meet your applications requirements
Each unit also contains 0%, 50%, and 100% test options to verify that the transmitter is both working and wired properly
Field calibration also can be performed by using the increment and decrement calibration DIP switches without the need to replace the sensing element
These enhancements provide increased flexibility and outstanding long-term reliability
Outside Air configurations feature a weatherproof Euro style enclosure with gasketed cover and conformally coated circuit boards for added moisture and chemical resistance
Three point NIST Calibration Certificates are available.
