Code: 1763

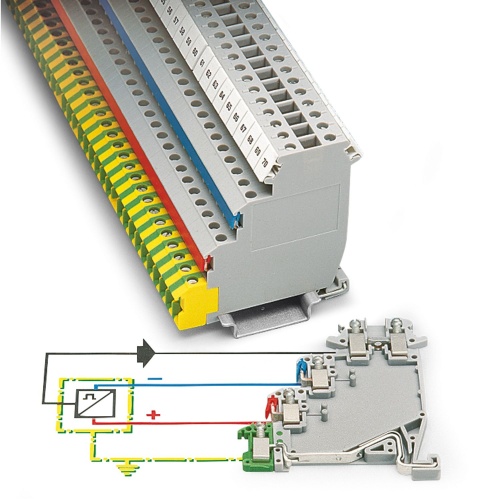

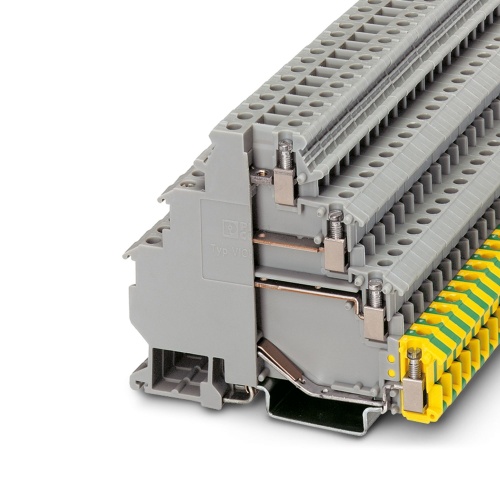

Phoenix Contact 2718206 Motor connection terminal block VIOK 1,5-3D/PE
Normally In Stock
VIOK 1,5-3D/PE Phoenix Contact 2718206 Phoenix Contact VIOK 1, 5-3D/PE, Sensor/actuator Terminal Block, Cross section: 0.2 mm - 4 mm, AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: gray (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$18.25
Sale Price
$15.21
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2718206 The motor connection terminal block features a nominal voltage of 400 V and a maximum current capacity of 24 A, which is secured through a screw connection at the second, third, and fourth levels. The rated cross-sectional area ranges from 2.5 mm² to 4 mm², while the actual available cross-sections span from 0.2 mm² to accommodate various cable sizes. The terminal block is designed for mounting using NS 35/7,5 or NS 35/15 connectors, and it has a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Model Type
VIOK
Features
It is used for programmable or self-monitoring initiators which are additionally controlled via the second feed-through level

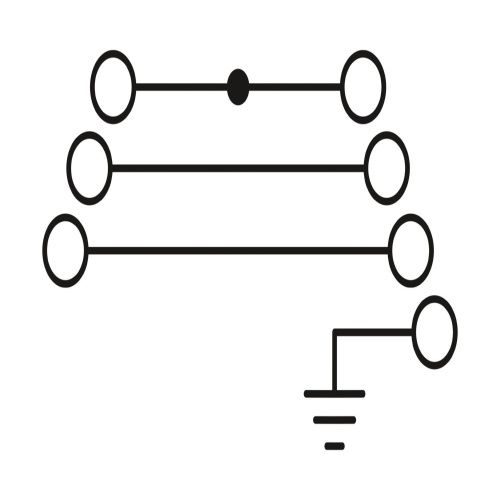

This terminal block has 2 feed-through levels and 2 busbar levels
