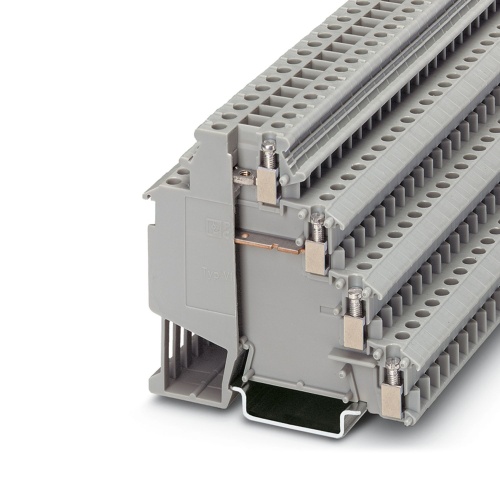

Phoenix Contact 2718196 Initiator/actuator terminal block VIOK 1,5-2D
Normally In Stock
Code: 1761
VIOK 1,5-2D Phoenix Contact 2718196 Phoenix Contact VIOK 1.5-2D, Gray Four Level Sensor-Actuator 6.2 mm Terminal Block with 2 feed through levels (screw connection), 250 V, 26 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$12.97
Sale Price
$10.81
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2718196 The initiator/actuator terminal block has a nominal voltage of 250 V and a maximum current capacity of 24 A, achieved through screw connections at the third and fourth levels. The rated cross-sectional area is 2.5 mm², while it can accommodate cross-sections ranging from 0.2 to 4 mm². Mounting options include NS 35/7,5 and NS 35/15 types, with a standard color designation of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

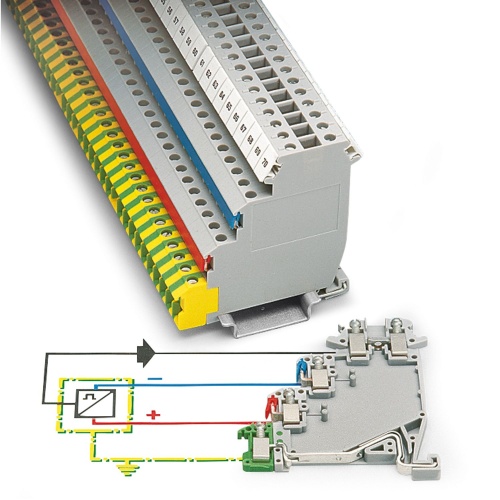

It is used for programmable or self-monitoring initiators which are additionally controlled via the second feed-through level
This terminal block has 2 feed-through levels and 2 busbar levels
