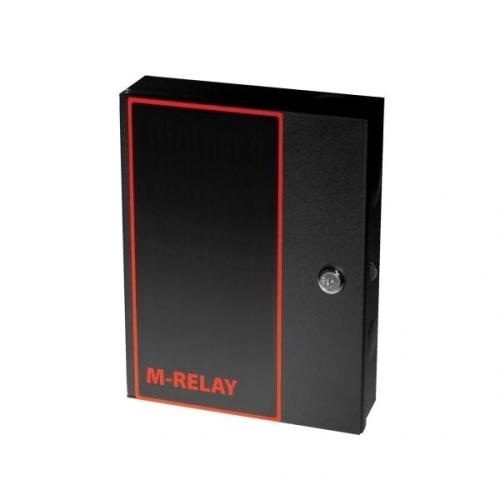

The M-Controller is a multi-channel controller and alarm unit that utilizes both digital and analog communications to interface with a maximum of 32 remote digital transmitter/sensors, and 8 analog transmitter/sensors

Common relay congurations include voting, averaging, delay on actuation and deactuation, normally/not-normally energized and latching

An additional feature includes 24 VDC transistor outputs for a horn and strobe

An RS-422 output responds as a RTU Slave using MODBUS protocol which allows the controller to provide read status information only

The M-Controller can be programmed with the onboard key pad or the M-View Software which is downloaded using the RS-232 interface

Also available is an analog output card that includes eight 4-20 mA analog outputs

Each analog output can be dened in complex fashions allowing the averaging of several input signals and outputs a linear 4-20 mA signal.
