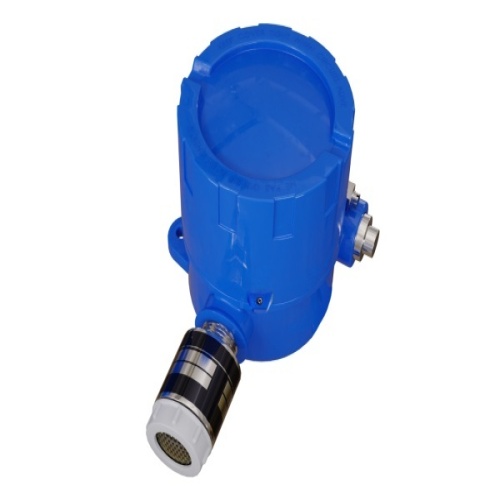

ACI 125937 QTS-17171X-S000000 Hydrogen Room Gas
Normally In Stock
Code: 175659
ACI 125937 Hydrogen, Expl Proof, 0-100% LEL, 3-wire 4-20mA Output
Condition: New
Usually ships Same Day or Next Day$1237.63
Sale Price
$1031.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 125937 Hydrogen, Expl Proof, 0-100% LEL, 3-wire 4-20mA Output
Specifications
Manufacturer
ACI
Component
Gas
(Instrument-Sensor) Type
Hydrogen
Features
The QTS-1710 Series utilizes a standard pellistor bead technology for the measurement of combustible gases
The sensor is resistant to poisoning substances such as Silicones, Sulfur and Chlorinated compounds
The Sensor is mounted to an explosion-proof housing while the transmitter provides a 3-wire, linear 4 to 20 mA output signal that is proportional to the LEL (Lower Explosive Limit) of the calibrated combustible gas
Test jacks are provided to monitor the transmitter signal without having to interrupt the output signal and Zero and Span adjustments allow for field calibration
Calibration and bump testing should be completed every three months in all combustible or explosive atmospheres
Calibration gases and 0.5 liter/minute gas regulators are not available through ACI
These should be purchased through your local gas supply company or companies such as Portagas® (Praxair®, Inc.) or Mesa Specialty Gases®
See the Q8 Combustible and Toxic Gas transmitter product data sheet for all applications that require a local display, remote sensor and a wider range of gases and output options
Refer to all applicable Federal, State, Provincial and Local Health and Safety laws and regulations before using these products
