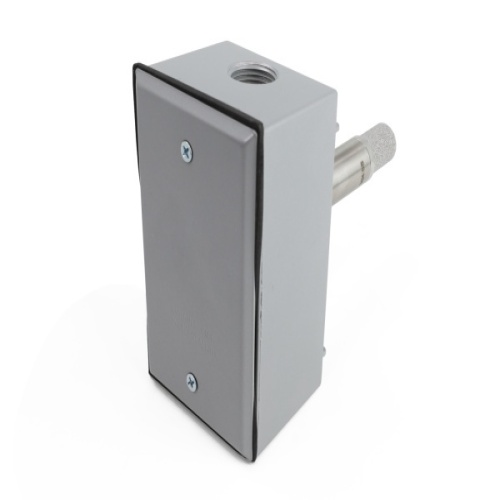

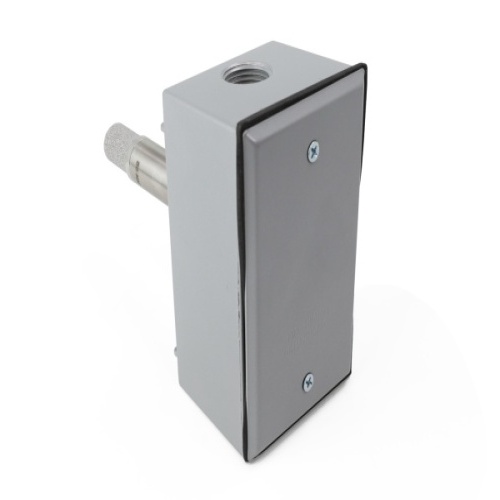

ACI 125605 A/RH1-AN-D-3.25"-BB Duct Humidity
Normally In Stock
Code: 175646
ACI 125605 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Duct (3.25" SS), ± 1% Accuracy, 10,000 Ohm Thermistor (Type III), Euro Enclosure
Condition: New
Backordered with 10-12 week lead time$453.10
Sale Price
$377.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI 125605 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Duct (3.25" SS), ± 1% Accuracy, 10,000 Ohm Thermistor (Type III), Euro Enclosure
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
1%
(Instrument-Sensor) Mounting
Duct
Features
The ACI Relative Humidity with Thermistor Duct Series utilizes a thermoset polymer capacitive sensing element with a factory fitted hydrophobic filter to improve its moisture resistance
The sensing elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils and common environmental chemicals are found
The RH duct sensors include on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources
Each unit also contains 0%, 50%, and 100% test options to verify that the transmitter is both working and wired properly
Field calibration can be performed by using the increment and decrement calibration DIP switches without the need to replace the sensing element
These enhancements provide increased flexibility and outstanding long-term reliability without the need to replace the sensors in the field
Duct configurations feature a weatherproof Euro style enclosure with a gasketed cover and conformally coated circuit boards for increased moisture resistance in high humidity environments
The sensor is protected by a stainless-steel sintered filter
Three point NIST Calibration Certificates are available.
