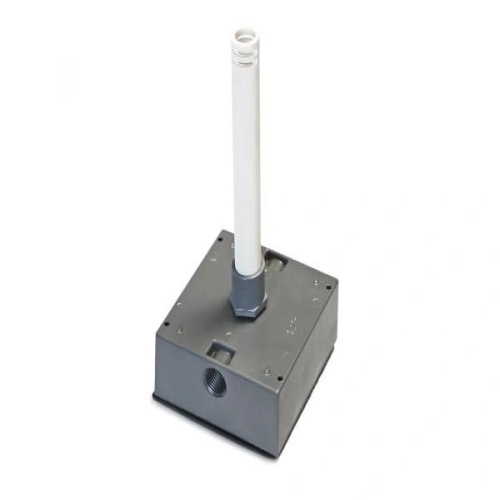

ACI 125410 A/RH3-TT1K-D-BB-4 Duct NEMA 3R Humidity
Normally In Stock
Code: 175621
ACI 125410 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Duct, ± 3% Accuracy, Transmitter w/ 1,000 Ohm RTD, NEMA 3R Enclosure, 4-20mA (Temp)
Condition: New
Backordered with 10-12 week lead time$253.01
Sale Price
$210.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The A/RH Series (temperature transmitter output) relative humidity transmitters utilize a capacitive sensing element to deliver a proportional analog output. The series features on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Field calibration can be performed by using the on board increment and decrement DIP switches. These enhancements provide increased flexibility and outstanding long-term performance. The A/RH Series is covered by ACI's Five (5) Year Limited Warranty.
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
3%
(Instrument-Sensor) NEMA Protection
NEMA 3R
(Instrument-Sensor) Mounting
Duct
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
Features
The ACI Relative Humidity with Temperature Transmitter Duct Series utilizes a thermoset polymer capacitive sensing element with a factory fitted hydrophobic filter to improve its moisture resistance
The sensing elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils and common environmental chemicals are found
The RH duct sensors include on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources
Single point field calibration can be performed by using the increment and decrement calibration DIP switches to adjust your curve up or down in +/- 0.5% increments with each toggle of the corresponding switches
These enhancements provide increased flexibility and outstanding long-term reliability without the need to replace the sensors in the field
Duct configurations feature either a NEMA 4X or NEMA 3R enclosure and a conformally coated circuit board for increased moisture resistance in high humidity environments
NIST Calibration Certificates (Temperature and RH) are included for all TTM RH part series.
