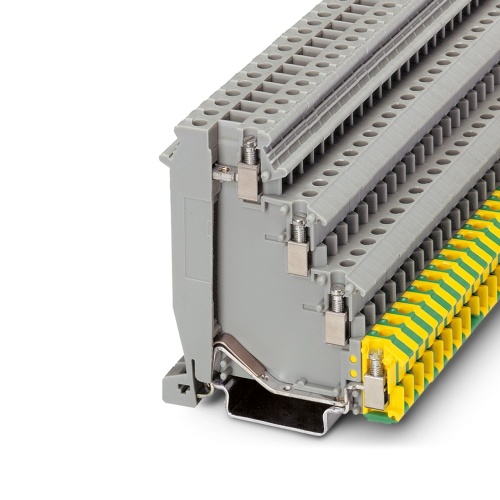

Phoenix Contact 2718015 Initiator/actuator terminal block VIOK 1,5
Normally In Stock
Code: 1756
VIOK 1,5 Phoenix Contact 2718015 Phoenix Contact VIOK 1.5, Gray Three Level Sensor-Actuator 6.2 mm Terminal Block with 1 feed through level (screw connection), 250 V, 26 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$13.39
Sale Price
$11.16
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2718015 A terminal block with an initiator or actuator function has a nominal voltage of 250V and can handle a maximum nominal current of 24A, secured through screw connections at multiple levels. The rated cross-sectional area for the wires is between 0.2-4mm², while the terminal's mounting type is NS35/7,5 or NS35/15 and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

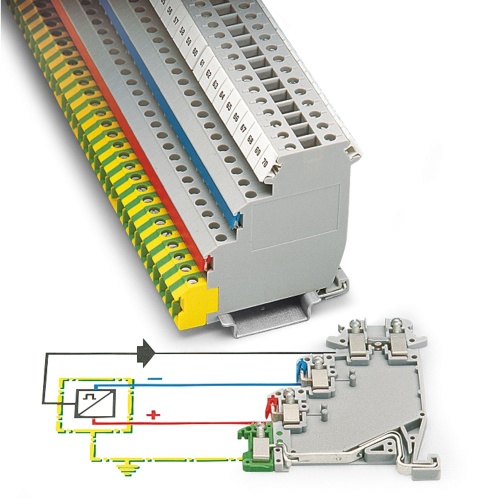

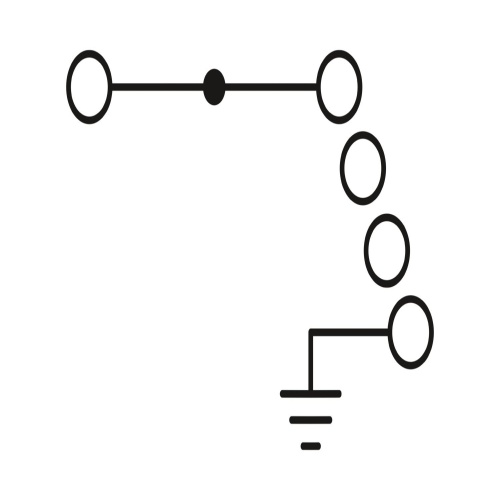

The two middle terminal points supply potential to the initiator
This terminal block is a combination of a DIK ... and DOK ... terminal block where a single terminal block can be used for initiators and actuators
The PE connection is located in the lower level
The upper level contains the feed-through connections for the signal cable which can be labeled
