Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

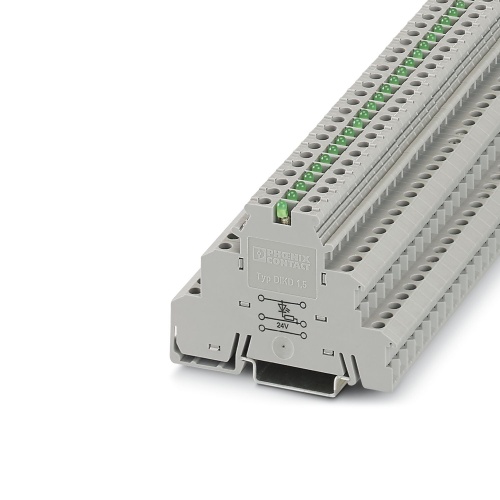

Phoenix Contact 2716376 Initiator/actuator terminal block DIKD 1,5-LA 24GN/O-M
Normally In Stock
Code: 1742
DIKD 1,5-LA 24GN/O-M Phoenix Contact 2716376 Sensor Actuator Terminal Block DIKD 1.5-LA 24GN/O-M
Condition: New
Usually Ships Same day or Next Day$28.01
Sale Price
$23.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2716376 The initiator/actuator terminal block has a nominal voltage of 250 V and a nominal current capacity of 24 A, with connections made using screw connections at multiple levels. The rated cross-sectional area is 2.5 mm², but can accommodate cross-sections ranging from 0.2 to 4 mm². It features different mounting types, including NS 35/7,5 and NS 35/15, and has a gray color.
Specifications
Terminal Block Indication
24V LED Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Diode
With Diode
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

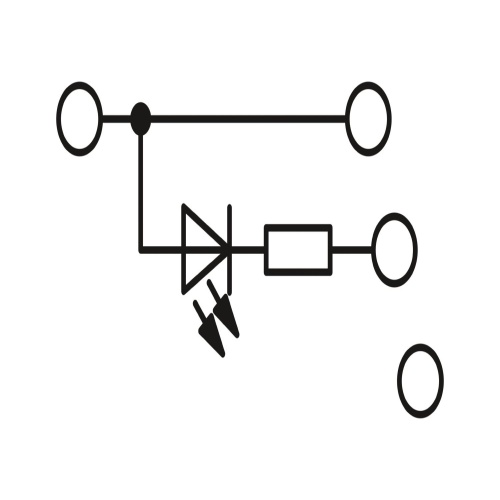

Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
Code: 1742
Phoenix Contact 2716376 Initiator/actuator terminal block DIKD 1,5-LA 24GN/O-M
$28.01
Sale Price
$23.34
