Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

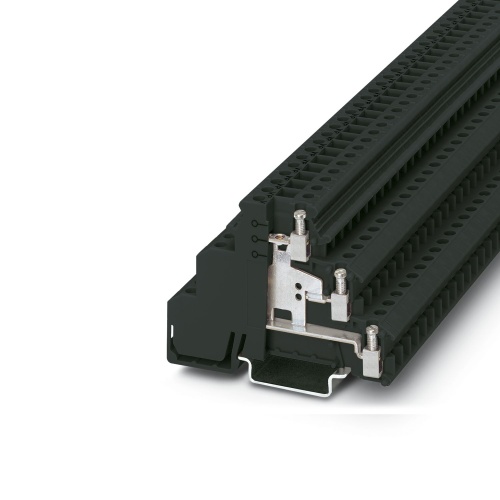

Phoenix Contact 2715571 Initiator/actuator terminal block DIKD 1,5-PV BK
Normally In Stock
Code: 1739
DIKD 1,5-PV BK Phoenix Contact 2715571 Phoenix Contact DIKD 1.5-PV BK, Black Three Level Sensor-Actuator 6.2 mm Terminal Block with screw connection, 250 V, 32 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$18.28
Sale Price
$15.23
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2715571 The initiator/actuator terminal block features an equipotential bonder with a nominal voltage of 250 V and a nominal current capacity of 24 A. It is connected using a screw connection method, available in three levels, and comes with rated cross-sections ranging from 2.5 mm² to 4 mm². The terminal block is mounted using two different types (NS 35/7.5 and NS 35/15) and has a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features
Bridgeable upper level for potential distribution over more than 6 terminal points
Space-saving potential distributor terminal block
The potential distributor terminal block is available with gray, blue or black insulating housing for clear potential identification
