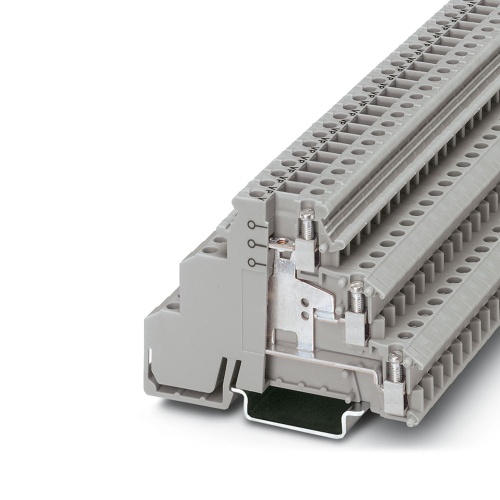

Phoenix Contact 2715092 Initiator/actuator terminal block DIKD 1,5-PV
Normally In Stock
Code: 1738
DIKD 1,5-PV Phoenix Contact 2715092 Phoenix Contact DIKD 1.5-PV, Gray Three Level Sensor-Actuator 6.2 mm Terminal Block with screw connection, 250 V, 32 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$16.33
Sale Price
$13.61
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2715092 A terminal block with an equipotential bonder is available for use, featuring a nominal voltage of 250 V and a nominal current capacity of 24 A. The connection method employs a screw connection at three levels (1st, 2nd, and 3rd) and allows for rated cross-sections ranging from 0.2 mm² to 4 mm². The terminal block is mounted using the NS 35/7,5 and NS 35/15 mounting types and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

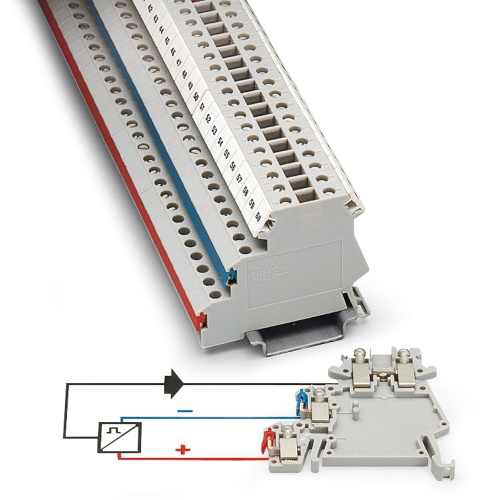

Bridgeable upper level for potential distribution over more than 6 terminal points
Space-saving potential distributor terminal block
The potential distributor terminal block is available with gray, blue or black insulating housing for clear potential identification
