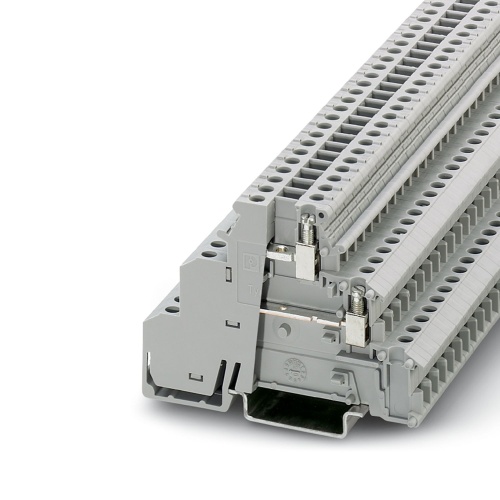

Phoenix Contact 2716512 Initiator/actuator terminal block DIKD 1,5-2D
Normally In Stock
Code: 1737
DIKD 1,5-2D Phoenix Contact 2716512 Phoenix Contact DIKD 1.5-2D, Gray Three Level Sensor-Actuator 6.2 mm Terminal Block with 2 feed through levels (screw connection), 250 V, 30 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$15.37
Sale Price
$12.81
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2716512 The initiator/actuator terminal block has a nominal voltage of 250 V and a nominal current capacity of 24 A, allowing for screw connections at both levels. It features rated cross sections ranging from 2.5 mm² to 4 mm², with smaller connections available, and is mounted using the NS 35/7.5 or NS 35/15 type, and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

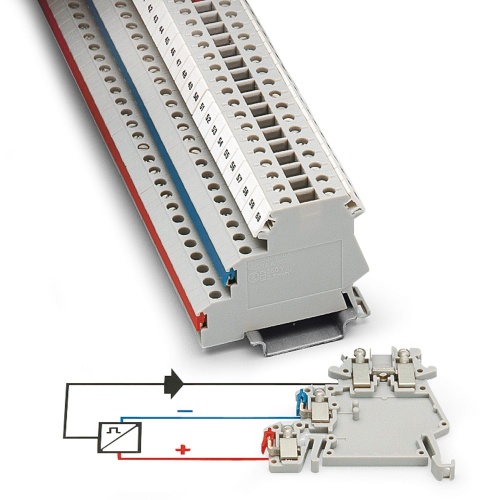

The positive and negative potential can be supplied to the insertion bridges via this power terminal block
The first initiator can also be connected to this three-conductor feed-through terminal block
