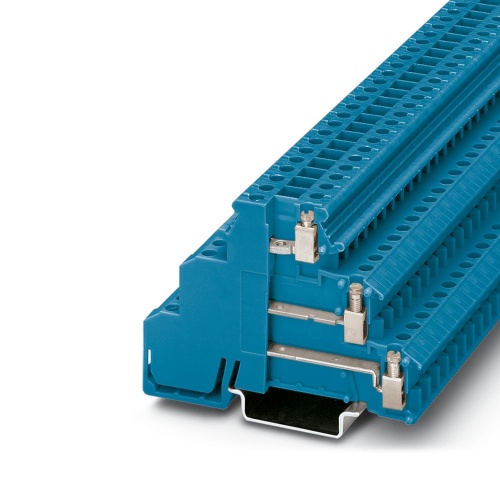

Phoenix Contact 2716101 Initiator/actuator terminal block DIKD 1,5 BU
Normally In Stock
Code: 1736
DIKD 1,5 BU Phoenix Contact 2716101 Phoenix Contact DIKD 1.5 BU, Blue Three Level Sensor-Actuator 6.2 mm Terminal Block with 3 feed through levels (screw connection), 250 V, 30 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$13.04
Sale Price
$10.87
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2716101 The initiator/actuator terminal block features a nominal voltage of 250V and a maximum nominal current of 24A, with connections made via screw methods at three different levels. The rated cross-sectional area is 2.5mm², spanning a range from 0.2-4mm², while the mounting type includes NS35/7.5 and NS35/15 models, distinguished by their blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

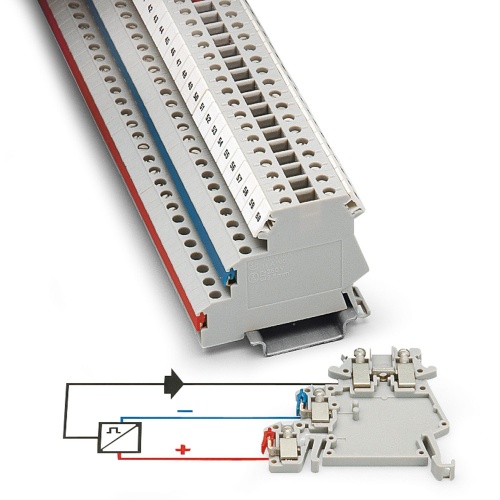

The positive and negative potential can be supplied to the insertion bridges via this power terminal block
The first initiator can also be connected to this three-conductor feed-through terminal block
