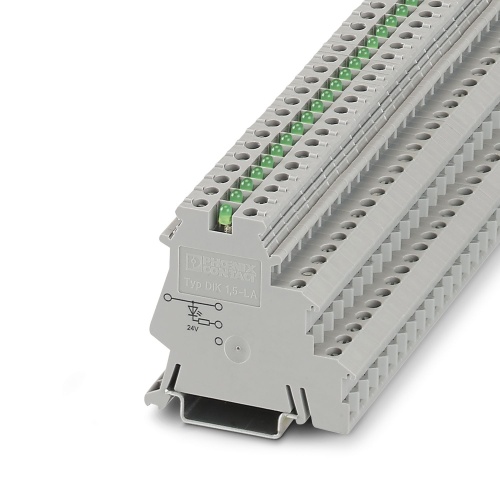

Phoenix Contact 2715762 Initiator/actuator terminal block DIK 1,5-LA 24GN/O-M
Normally In Stock
Code: 1731
DIK 1,5-LA 24GN/O-M Phoenix Contact 2715762 Phoenix Contact DIK 1, 5-LA 24GN/O-M, Sensor/actuator Terminal Block, Cross section: 0.2 mm - 4 mm, AWG: 24 - 12, Connection type: Screw connection, Width: 6.2 mm, Color: gray (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$22.01
Sale Price
$18.34
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

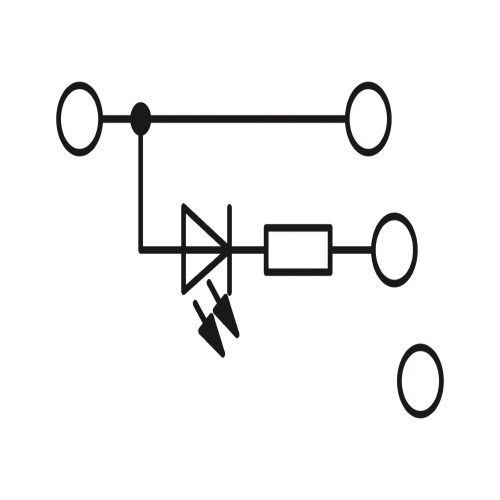

Phoenix Contact 2715762 The initiator/actuator terminal block has a nominal voltage of 24V and a maximum current rating of 24A, with screw connections available for attachment. The available cross-sections range from 0.2mm² to 4mm², and it can be mounted using the NS 35/7.5 or NS 35/15 mounting types, with a standard color being gray.
Specifications
Terminal Block Indication
24V LED Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Diode
With Diode
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

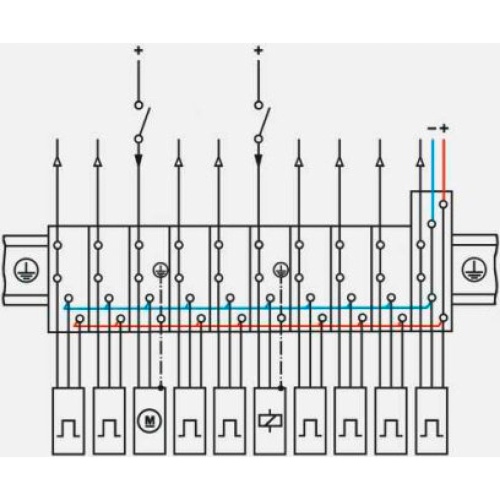

Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
