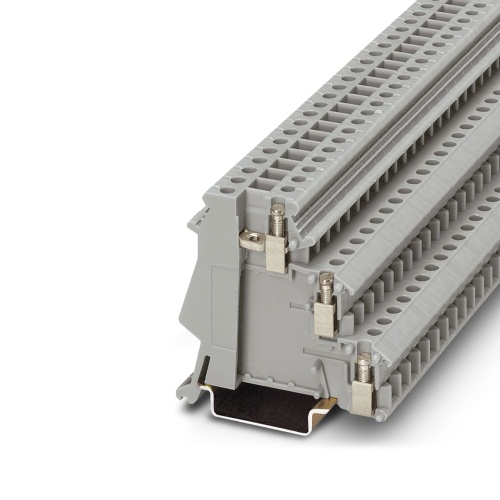

Phoenix Contact 2715966 Initiator/actuator terminal block DIK 1,5
Normally In Stock
Code: 1729
DIK 1,5 Phoenix Contact 2715966 Phoenix Contact DIKD 1.5 Gray Three Level Sensor-Actuator 6.2 mm Terminal Block with 1 feed through level (screw connection), 250 V, 26 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.20
Sale Price
$6.00
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2715966 The initiator/actuator terminal block has specifications including a nominal voltage of 250 V and a nominal current capacity of 24 A, with connections made using screw methods at three levels. The rated cross-sectional area is 2.5 mm2, spanning from 0.2 mm2 to 4 mm2, and it can be mounted using two types: NS 35/7.5 and NS 35/15, while its color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features

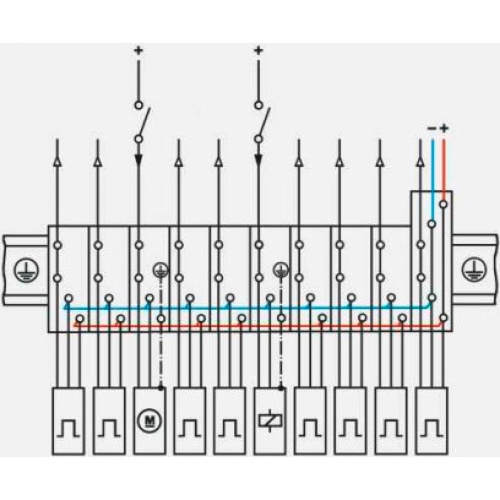

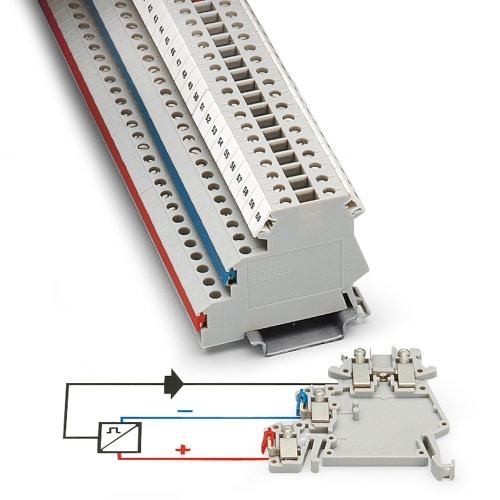

The lower terminal points can be bridged using an insertion bridge that can be separated
The two lower terminal points supply potential to the initiator
The upper level contains the feed-through connections for the signal cable which can be labeled
