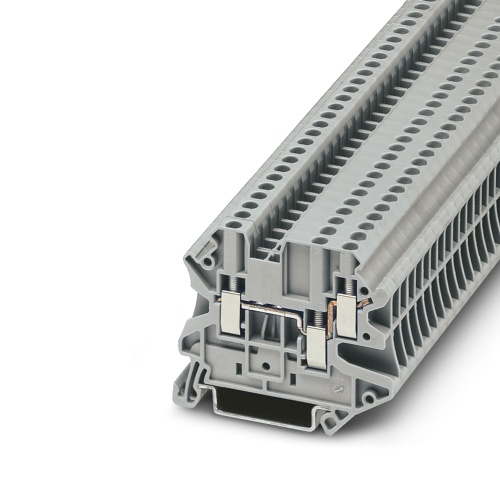

Phoenix Contact 3044513 Feed-through terminal block UT 2,5-TWIN
Normally In Stock
Code: 1634
UT 2,5-TWIN Phoenix Contact 3044513 Phoenix Contact UT 2.5-TWIN. Terminal Block 5.2mm Gray 3 Conductor Single through screw connection, up to 500V, 30A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.14
Sale Price
$1.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044513 A feed-through terminal block with a nominal voltage of 500 V and a maximum current capacity of 24 A has three connections, secured via screw connection. The rated cross-sectional area is between 2.5 mm² and 4 mm² per level, with a minimum of 0.14 mm². This terminal block comes in two mounting types: NS 35/7.5 and NS 35/15, and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
User-friendly implementation of all potential branching tasks
Tested for railway applications
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
Downloads
Phoenix 3044513 CAD data International.dxfPhoenix 3044513 CAD data International.pdfPhoenix 3044513 CAD data International.stpPhoenix 3044513 CAD Drawing.zipPhoenix 3044513 Certification English.pdfPhoenix 3044513 Certification International.pdfPhoenix 3044513 Manufacturers declaration English.pdfPhoenix 3044513 Manufacturers declaration International-2.pdfPhoenix 3044513 Manufacturers declaration International.pdfPhoenix 3044513 Safety note English.pdfPhoenix 3044513 Spec Sheet.pdfPhoenix 3044513 Tender Text English.zipPhoenix 3044513 User instructions for the Ex Area International.pdfPhoenix 3044513 User Manual.pdf
