Code: 16221

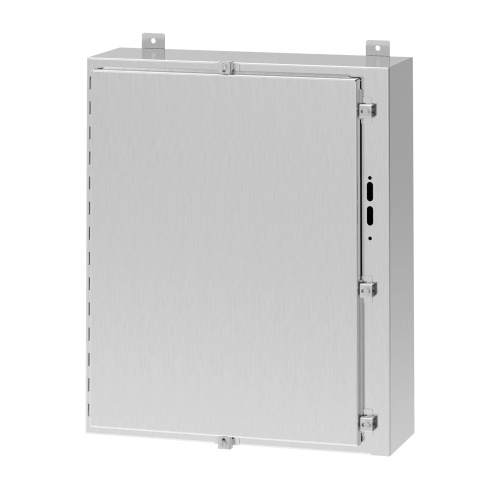

nVent Hoffman A36HS3108SS6LP 316 Stainless Steel Disconnect Enclosure
nVent Hoffman A36HS3108SS6LP Disconnect Enclosure. 36" x 31.38" x 8" (HxWxD). 316 Stainless Steel Type 4x with clamp latches and continuous hinge includes Bracket welded to door for attaching disconnect door catch (interlock) and Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$7428.37
Sale Price
$6190.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A36HS3108SS6LP 316 Stainless Steel Disconnect Enclosure For disconnect applications in which a clamp-secured door is preferred, this enclosure features clamps on three sides to keep liquids and contaminants from entering and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Clamp
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
36"
Enclosure Width
31.38"
Component
Disconnect Enclosure
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Door removed by pulling stainless steel continuous hinge pin
External-formed flange around all sides of enclosure opening
Stainless steel door clamps on three sides of door
Data pocket is high-impact thermoplastic
External mounting brackets
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
All exterior hardware on Type 316L enclosures matches the enclosure material
Bonding provision on door, ground stud on body
Holes provided in body for mounting disconnect operating handle and operating mechanism
Collar studs provided for mounting optional panels
Adjustable door interlock bracket fastened to door
Downloads
Hoffman A36HS3108SS6LP 2D DXF CAD.zipHoffman A36HS3108SS6LP 3D STEP CAD.zipHoffman A36HS3108SS6LP CAD Drawing.zipHoffman A36HS3108SS6LP CSA Certification.pdfHoffman A36HS3108SS6LP Declaration of Compliance.pdfHoffman A36HS3108SS6LP Dimension Drawing.gifHoffman A36HS3108SS6LP Enclosure Alterations Instructions.pdfHoffman A36HS3108SS6LP Enclosure Alterations Manual.pdfHoffman A36HS3108SS6LP EU Certification.pdfHoffman A36HS3108SS6LP Grounding Kit Instructions.pdfHoffman A36HS3108SS6LP Instruction Manual.pdfHoffman A36HS3108SS6LP Spec Sheet.pdfHoffman A36HS3108SS6LP UL Certification.pdfHoffman A36HS3108SS6LP Varible Depth and Flexible Cable Disconnect Devices Installation Instructions.pdf
