Code: 1622

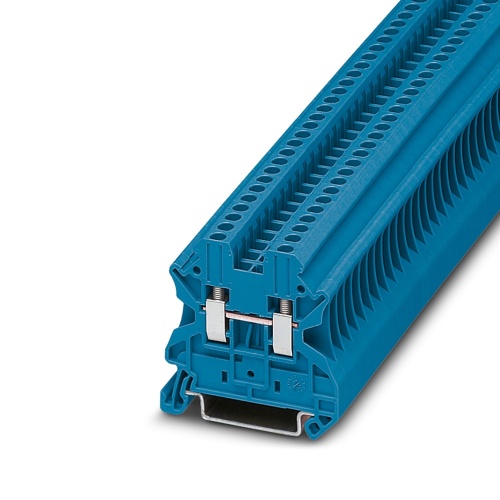

Phoenix Contact 3044089 Feed-through terminal block UT 2,5 BU
Normally In Stock
UT 2,5 BU Phoenix Contact 3044089 Phoenix Contact UT 2.5 BU. Terminal Block 5.2mm Blue Single through screw connection, 1000V, 32A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$1.16
Sale Price
$0.97
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044089 The feed-through terminal block has a nominal voltage of 1000 V and can handle a nominal current of 24 A with two connections made using screw connections. The cross-sectional area of the rated connection is 2.5 mm², while the actual range for cross-sections is between 0.14 mm² and 4 mm². It comes in two mounting types: NS 35/7.5 and NS 35/15, with a color that is blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Tested for railway applications
Downloads
Phoenix 3044089 Application Note International.pdfPhoenix 3044089 Assembly Instructions.pdfPhoenix 3044089 CAD data International.dxfPhoenix 3044089 CAD data International.pdfPhoenix 3044089 CAD data International.stpPhoenix 3044089 CAD Drawing.zipPhoenix 3044089 Certification English-2.pdfPhoenix 3044089 Certification English.pdfPhoenix 3044089 Manufacturers declaration English.pdfPhoenix 3044089 Manufacturers declaration International-2.pdfPhoenix 3044089 Manufacturers declaration International-3.pdfPhoenix 3044089 Manufacturers declaration International.pdfPhoenix 3044089 Product Information English.pdfPhoenix 3044089 Safety note English.pdfPhoenix 3044089 Spec Sheet.pdfPhoenix 3044089 Tender Text English.zipPhoenix 3044089 User instructions for the Ex Area International.pdfPhoenix 3044089 User Manual.pdf
